Chevrolet Equinox Service Manual: Front Seat Tilt Adjuster Actuator Replacement Seats Front

Chevrolet Equinox Service Manual / Body / Seating / Front Seat Tilt Adjuster Actuator Replacement Seats Front

Front Seat Tilt Adjuster Actuator Replacement Seats Front

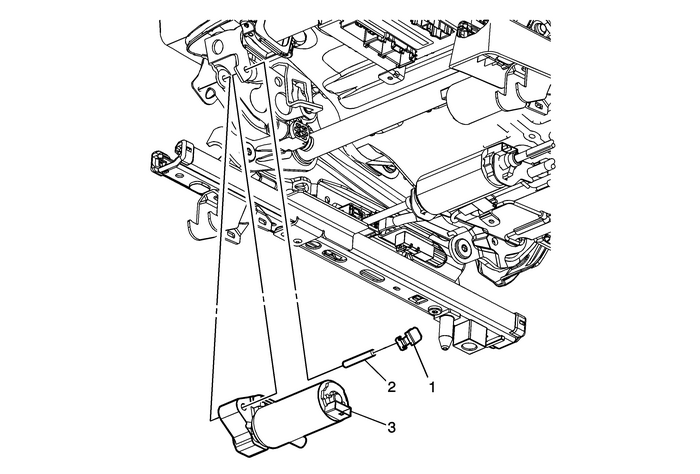

Front Seat Tilt Adjuster Actuator Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver or passenger seat. Refer toDriver or Passenger Seat Removal and Installation.

1

Front Seat Tilt Adjuster Actuator Securing Clip

Procedure

Remove the securing clip from the actuator and rollpin.

2

Front Seat Tilt Adjuster Actuator Roll Pin

Procedure

Use a hammer and small round tool to tap the roll pin outfrom the actuator.

3

Front Seat Tilt Adjuster Actuator

ProcedureDisconnect the electrical connector.Remove the adjuster vertical actuator by pulling downwardfrom the cushion frame tilt actuator bracket.
