Chevrolet Equinox Service Manual: Front Lower Control Arm Bushing Replacement (Rear Bushing) Control Arms Lower Control Arm

Chevrolet Equinox Service Manual / Chassis / Suspension / Front Lower Control Arm Bushing Replacement (Rear Bushing) Control Arms Lower Control Arm

Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the front tire and wheel assembly. Refer toTire and Wheel Removal and Installation.Remove the lower control arm. Refer toLower Control Arm Replacement.

Front Lower Control Arm Bushing Replacement (Rear Bushing) Control Arms Lower Control Arm

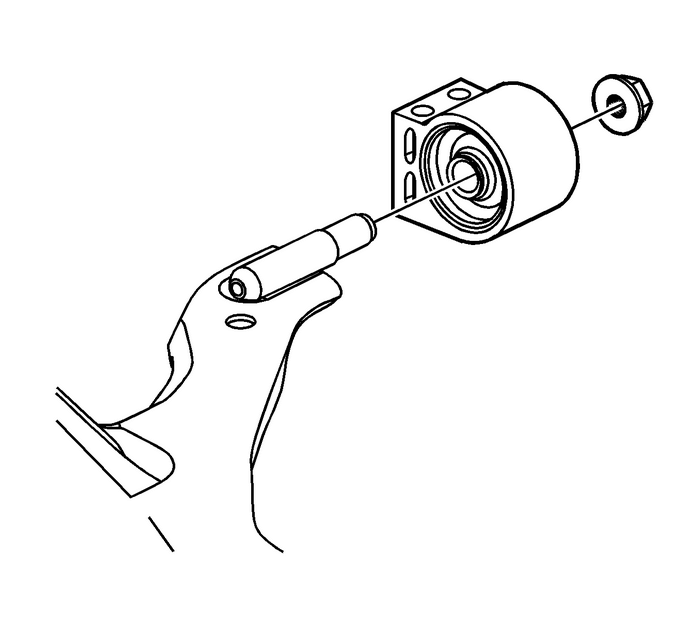

Remove the front lower control arm rear bushing nut.Remove the front lower control arm rear bushing.Installation Procedure

Front Lower Control Arm Bushing Replacement (Rear Bushing) Control Arms Lower Control Arm

Install the front lower control arm rear bushing on the lower control arm.

Caution:Refer toFastener Caution.

Install the front lower control arm rear bushing nut and tighten to 150-Y (110-lb-ft).Install the lower control arm. Refer toLower Control Arm Replacement.Install the front tire and wheel assembly. Refer toTire and Wheel Removal and Installation.
