Warning:Refer toExhaust Service Warning. Preliminary Procedure Raise and support the vehicle. Refer toLifting and Jacking the Vehicle | |

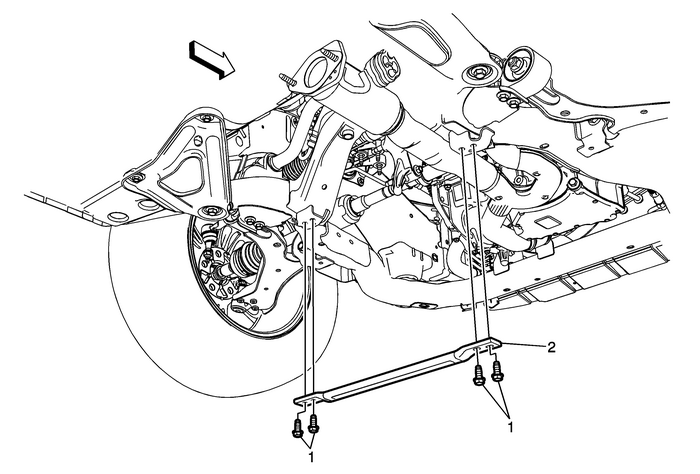

1 | Front Lower Control Arm Bracket Brace Bolt(Qty:-2) Caution:Refer toFastener Caution. Tighten30-Y(22-lb-ft). |
2 | Front Lower Control Arm Bracket Brace |
Tail Lamp Replacement (Terrain) Lighting Exterior Lighting Tail Lamp
Tail Lamp ReplacementCalloutComponent NamePreliminary ProcedureOpen and support the liftgate assembly.1Tail Lamp Access Hole Cover (Qty:-2)Tip:Use a small flat bladed tool to aid in the removal of theaccess hole covers.2Tail Lamp Screw (Qty:-2)Caution:Refer toFastener Caution.Tighten2.5-Y(22-lb-in)3 ...
