Front Grille Opening Bezel Replacement (Terrain) Front Grille

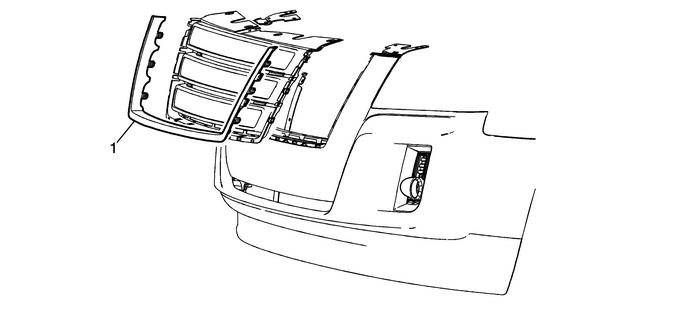

Front Grille Opening Bezel Replacement

Callout

Component Name

Preliminary Procedure

Remove the radiator upper grille assembly. Refer toFront Upper Grille Replacement.

1

Radiator Grille Opening Bezel

Procedure

Release the tabs securing the radiator grille opening bezelto the radiator upper grille assembly.
