Front Drive Axle Inner Shaft Seal Replacement Automatic Transmission Unit

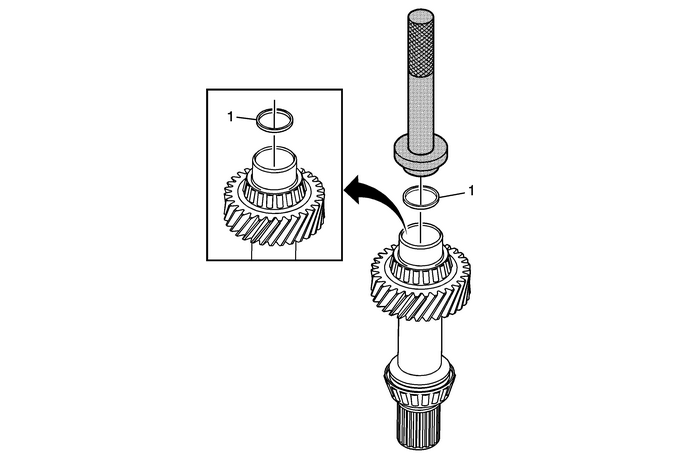

Front Drive Axle Inner Shaft Seal Replacement

Callout

Component Name

1

Front Drive Axle Intermediate Shaft Seal Assembly

Procedure

DT-48078 inner drive shaft seal installer seats the seal to a specific depth. Other installation methods may set the seal toa non-functional depth.

Special ToolsDT-48078 Inner Drive Shaft Seal InstallerJ-8092 Driver Handle

For equivalent regional tools, refer toSpecial Tools.
