Chevrolet Equinox Service Manual: Front Differential Transfer Drive Gear Support Assembly Assemble Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Front Differential Transfer Drive Gear Support Assembly Assemble Automatic Transmission Unit

Table 1: Drive Support Seal Installation
Table 2: Fluid Passage Tube Installation
Table 3: Seal Installation

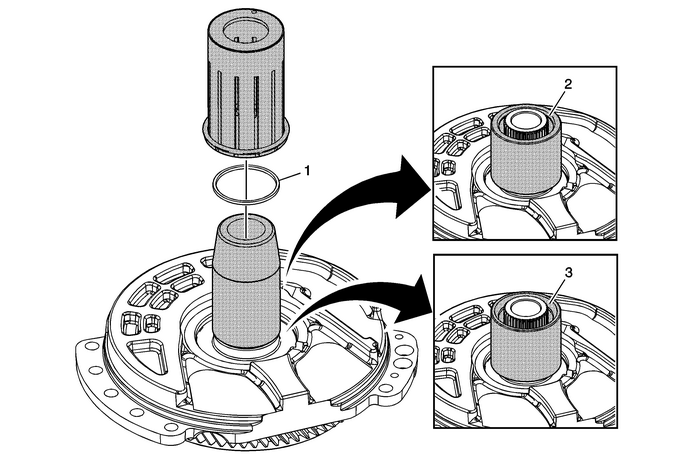

Drive Support Seal Installation

Front Differential Transfer Drive Gear Support Assembly Assemble Automatic Transmission Unit

Drive Support Seal Installation

Callout

Component Name

1

Front Differential Transfer Drive Gear Support Seal

Note:A NEW seal must be installed.

Special Tools

DT-46624 Support Seal Installer

For equivalent regional tools, refer toSpecial Tools.

2

Small Chamfer Faces Up

Caution:To avoid damaging the seal, first placeDT-46624–1 with the small chamfer end facingup and leave in place for at least 60 seconds.

3

Large Chamfer Faces Up

Note:Turn DT-46624-1 which is part of DT-46624 seal installer, over with the large chamfer end facing up for 60 seconds to ensure that the sealhas been properly sized.

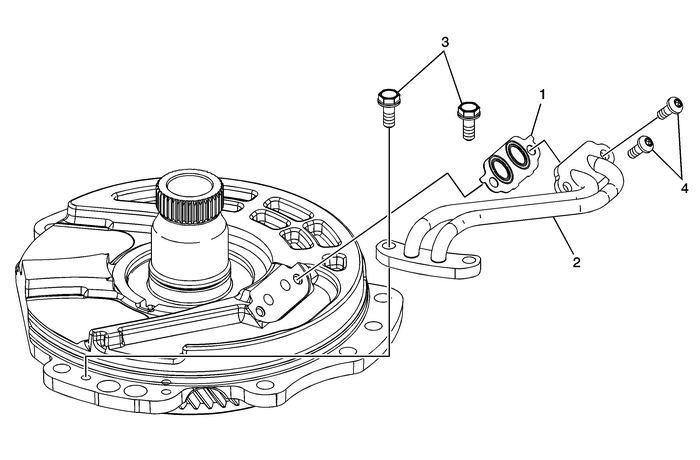

Fluid Passage Tube Installation

Front Differential Transfer Drive Gear Support Assembly Assemble Automatic Transmission Unit

Fluid Passage Tube Installation

Callout

Component Name

1

Front Differential Transfer Drive Gear Support Fluid Passage Tube Gasket

2

Fluid Passage Tube Assembly

3

Front Differential Transfer Drive Gear Fluid Passage Tube Bolt-M6-x-15 (Qty: 2)

Caution:Refer toFastener Caution.

Tighten

12-Y (106-lb-in)

4

Front Differential Transfer Drive Gear Fluid Passage Tube Bolt-M5-x-12 (Qty: 2)

Tighten

7-Y (62-lb-in)

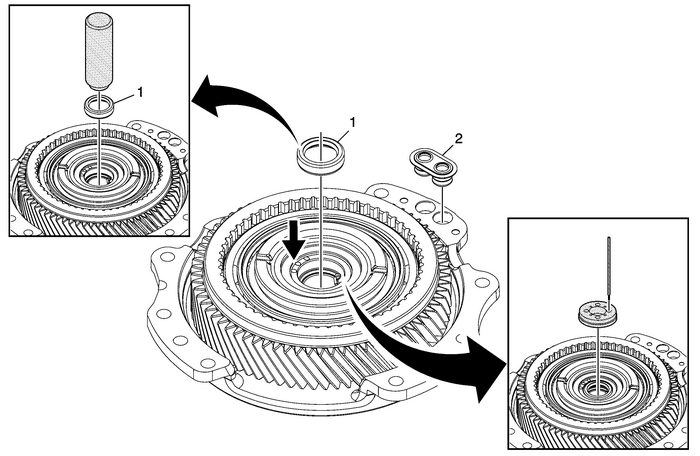

Seal Installation

Front Differential Transfer Drive Gear Support Assembly Assemble Automatic Transmission Unit

Seal Installation

Callout

Component Name

1

Front Differential Transfer Drive Gear Support Seal

Caution:

Ensure staking does not line up with lubrication holes or theholes may be damaged.Stop driving the seal once it bottoms out to avoid sealdamage.

Note:The fluid seal assembly must be staked in place using DT-49131 seal staking tool to ensure proper seal retention.

Special ToolsDT-46627-A Seal InstallerDT-49131 Seal Staking Tool

For equivalent regional tools, refer toSpecial Tools.

2

Front Differential Transfer Drive Gear Support Torque Converter Fluid Seal Assembly
