Front Differential Drive Pinion Gear and Carrier Installation Automatic Transmission Unit

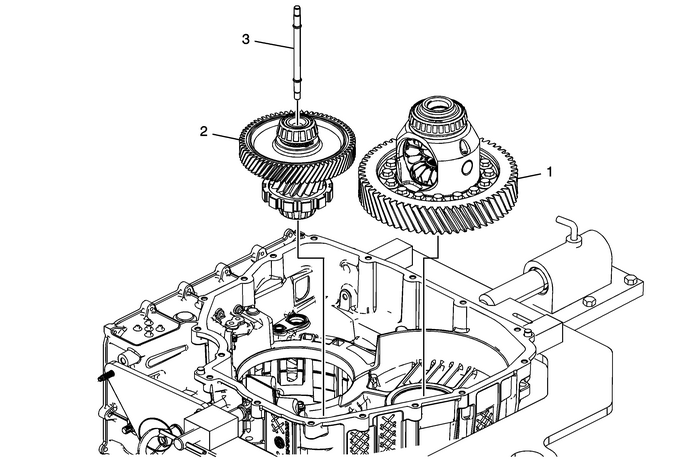

Front Differential Drive Pinion Gear and Carrier Installation

Callout

Component Name

1

Front Differential Carrier Assembly

Note:Install the differential assembly and the pinion gear assembly together to avoid interferencewith the gears during installasion.

2

Front Differential Drive Pinion (w/Transfer Gear) Gear Assembly

3

Front Differential Drive Pinion Gear Lube Tube
