Front Differential Carrier Bearing Installation (AWD) Automatic Transmission Unit

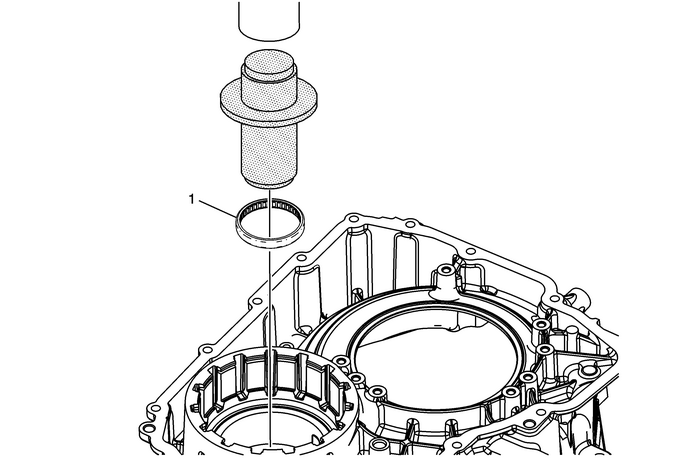

Front Differential Carrier Bearing Installation

Callout

Component Name

1	Front Differential Carrier Bearing Note:Press the bearing until the tool stops against the housing to ensure the bearing isinstalled to the correct dimension. Special ToolsDT-49831 Differential Bearing Remover/Installer (2 Pinion Blue)DT-50087 Differential Bearing Remover/Installer (4 Pinion Red)

Front Differential Carrier Bearing Cup Replacement - Case Side Automatic Transmission Unit

Front Differential Carrier Bearing Cup Replacement - Case SideCalloutComponent Name1Front Differential Bearing CupCaution:Support the back side of the case before installing thebearing cup. Apply a li ...

Front Differential Carrier Cleaning and Inspection Automatic Transmission Unit

Front Differential Carrier Cleaning and InspectionCalloutComponent NameCaution:After cleaning the transmission components, allow to air dry.Do not use cloth or paper towels in order to dry any transmi ...
