Front Bumper Fascia Opening Cover Replacement Bumpers Front Bumper

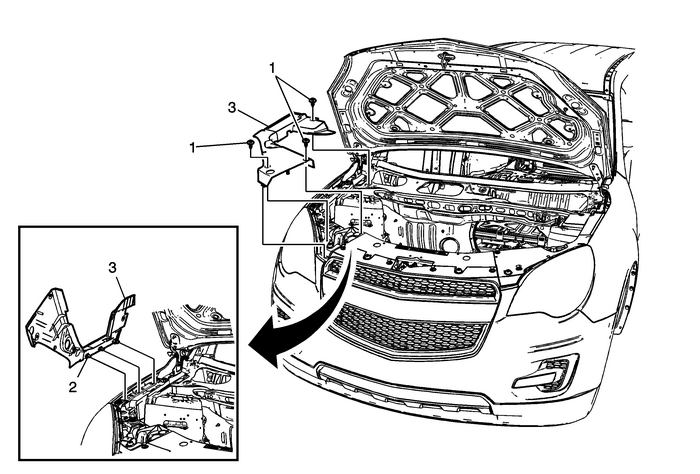

Front Bumper Fascia Opening Cover Replacement

Callout

Component Name

1

Front Bumper Fascia Opening Cover Push-In Retainer(Qty:-3)

Procedure

Disengage the front retainer by the grille.

2

Front Bumper Fascia Opening Cover Retainer

Procedure

Rotate and pull the cover up.

3

Front Bumper Fascia Opening Cover
