Chevrolet Equinox Service Manual: Fog Lamps Lighting Bulbs

Chevrolet Equinox Service Manual / Body / Body Electrical / Fog Lamps Lighting Bulbs

To replace one of these bulbs:

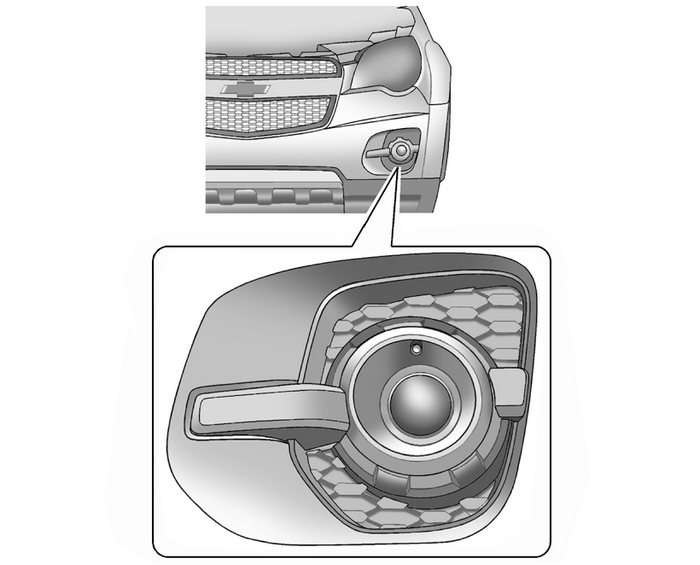

Fog Lamps Lighting Bulbs

Locate the fog lamp assembly under the front fascia.Remove the bulb from the lamp assembly by turning it counterclockwise and pullingstraight out.Disconnect the electrical connector.Reverse Steps 2 and 3 for assembly.
