Chevrolet Equinox Owners Manual: Filling the Tank (Gasoline)

Warning Fuel vapors and fuel fires burn violently and can cause injury or death.
  •  To help avoid injuries to you and others, read and follow all the instructions on the fuel pump island.
  •  Turn off the engine when refueling.
  •  Keep sparks, flames, and smoking materials away from fuel.
  • Do not leave the fuel pump unattended.
  •  Do not use a cell phone while refueling.
  •  Do not reenter the vehicle while pumping fuel.
  •  Keep children away from the fuel pump and never let children pump fuel.
  •  Fuel can spray out if the refueling nozzle is inserted too quickly. This spray can happen if the tank is nearly full, and is more likely in hot weather. Insert the refueling nozzle slowly and wait for any hiss noise to stop prior to beginning to flow fuel.

Filling the Tank (Gasoline)

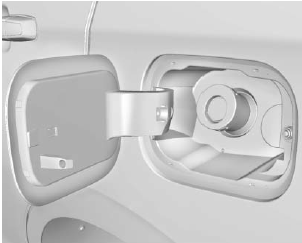

To open the fuel door, push and release the rearward center edge of the door.

The vehicle has a capless fuel system and does not have a fuel cap. The filling nozzle must be fully inserted and latched prior to starting fuel flow.

Warning Overfilling the fuel tank by more than three clicks of a standard fill nozzle may cause:
  •  Vehicle performance issues, including engine stalling and damage to the fuel system.
  •  Fuel spills.
  •  Potential fuel fires.

Be careful not to spill fuel. Wait a few seconds after you have finished pumping before removing the nozzle. Clean fuel from painted surfaces as soon as possible. See Exterior Care.

Warning If a fire starts while you are refueling, do not remove the nozzle. Shut off the flow of fuel by shutting off the pump or by notifying the station attendant.

Leave the area immediately.

Filling the Tank with a Portable Gas Can

If the vehicle runs out of fuel and must be filled from a portable gas can:

Filling the Tank with a Portable Gas Can

  1. Locate the capless funnel adapter from under the spare tire.
  2.  Insert and latch the funnel into the capless fuel system.
Warning Attempting to refuel without using the funnel adapter may cause fuel spillage and damage the capless fuel system. This could cause a fire and you or others could be badly burned and the vehicle could be damaged.
  1. Remove and clean the funnel adapter and return it to the storage location.
