Evaporative Emission Canister Purge Tube Replacement Emissions Evap Evap Canister

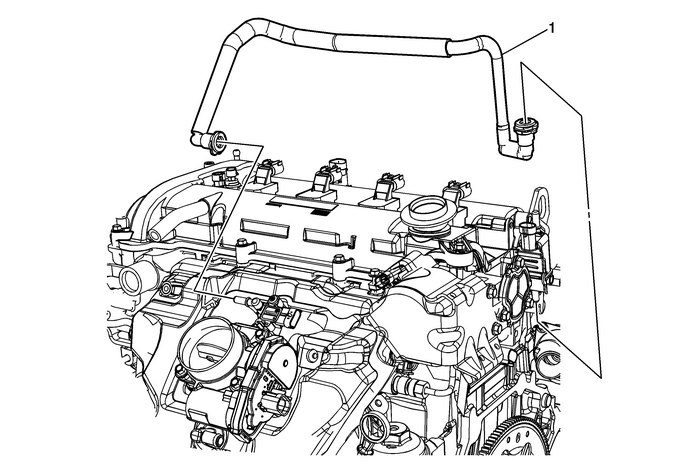

Evaporative Emission Canister Purge Tube Replacement

Callout

Component Name

Preliminary ProcedureRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Disconnect the plastic quick connectors. Refer toPlastic Collar Quick Connect Fitting Service.

1

Evaporative Emission Canister Purge Tube
