Chevrolet Equinox Service Manual: Engine Oil and Oil Filter Replacement Engine Lubrication Oil Filter
Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Place a drain pan under the oil pan drain plug.Remove the oil pan drain plug. Allow the oil to draincompletely.
Caution:Refer toFastener Caution.
Install the oil pan drain plug and tighten to25-Y(18-lb-ft).
Warning:Refer toHot Exhaust System Warning.

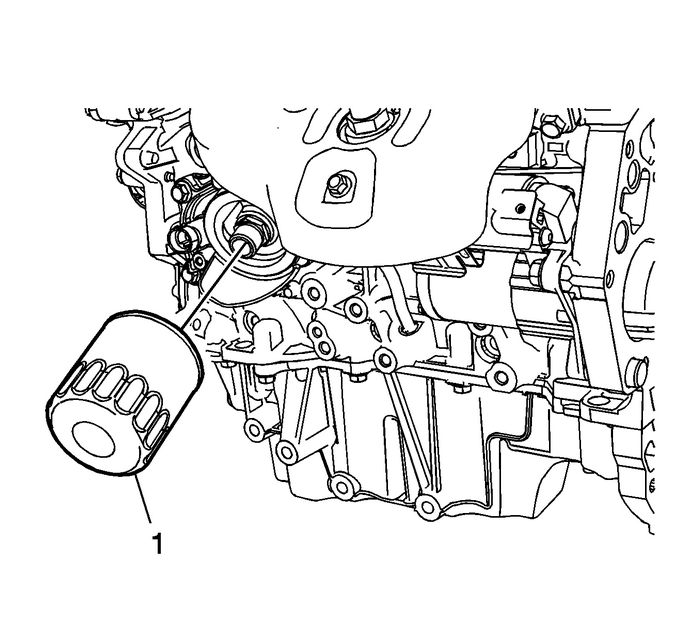

Place the drain pan under the oilfilter-(1).Remove the oil filter. Allow the oil to draincompletely.Installation Procedure
Lubricate the NEW oil filter gasket with clean engineoil.Tighten the oil filter-(1) to25-Y(18-lb-ft).Lower the vehicle.Refill the engine oil. Refer toApproximate Fluid Capacities.Start the engine and inspect for leaks.
