Engine Mount Bracket Replacement - Right Side Engine Block Engine Mounts

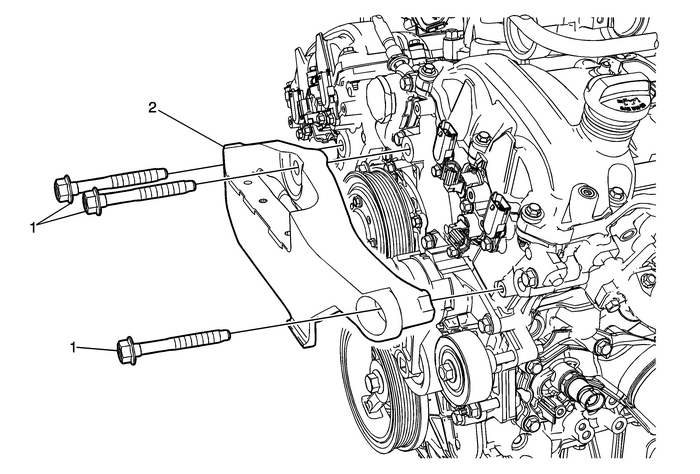

Engine Mount Bracket Replacement - Right Side

Callout

Component Name

Preliminary ProceduresRemove the air cleaner assembly. Refer toAir Cleaner Assembly Replacement.Remove engine mount. Refer toEngine Mount Replacement - Right Side.

1

Engine Mount Bracket Fastener (Qty:-3)

Caution:Refer toFastener Caution.

Procedure

Remove the A/C pipe bracket nut and reposition pipe to accessfront mount bracket fastener.

Tighten

100-Y(74-lb-ft)

2

Engine Mount Bracket

Procedure

Transfer components as necessary.

Engine Mechanical Specifications
Engine Mechanical SpecificationsApplicationSpecificationMetricEnglishGeneralEngine TypeV-6Displacement3.6-Liter220-cu-inRPOLFXVIN3Bore94-mm3.7008-inStroke85.6-mm3.37-inCompression Ratio11.5:1Firing Or ...
