Chevrolet Equinox Service Manual: Engine Front Cover and Oil Pump Installation Engine Block Cylinder Block Cyl Block Front Cover

Chevrolet Equinox Service Manual / Powertrain / Engine / Engine Front Cover and Oil Pump Installation Engine Block Cylinder Block Cyl Block Front Cover

Engine Front Cover and Oil Pump Installation Engine Block Cylinder Block Cyl Block Front Cover

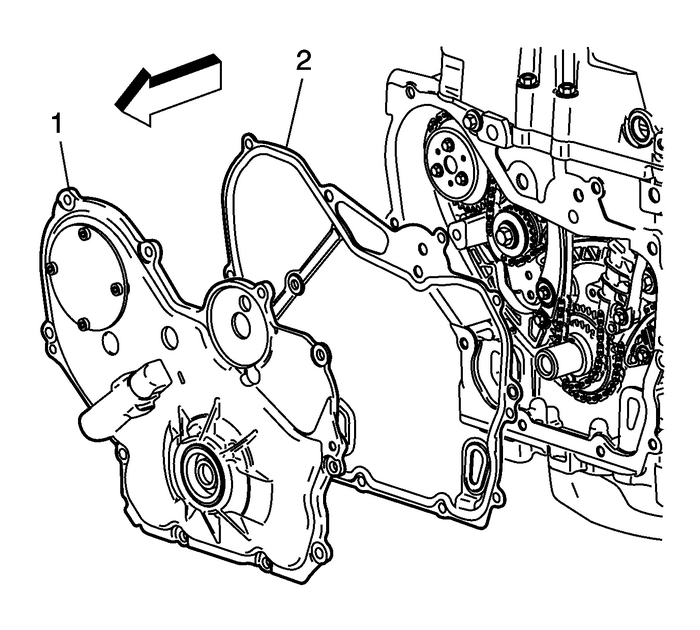

Install the engine front cover-(1) with a newgasket-(2).

Engine Front Cover and Oil Pump Installation Engine Block Cylinder Block Cyl Block Front Cover

Caution:Refer toFastener Caution.

Note:The center bolt-(1) should be tightenedlast.

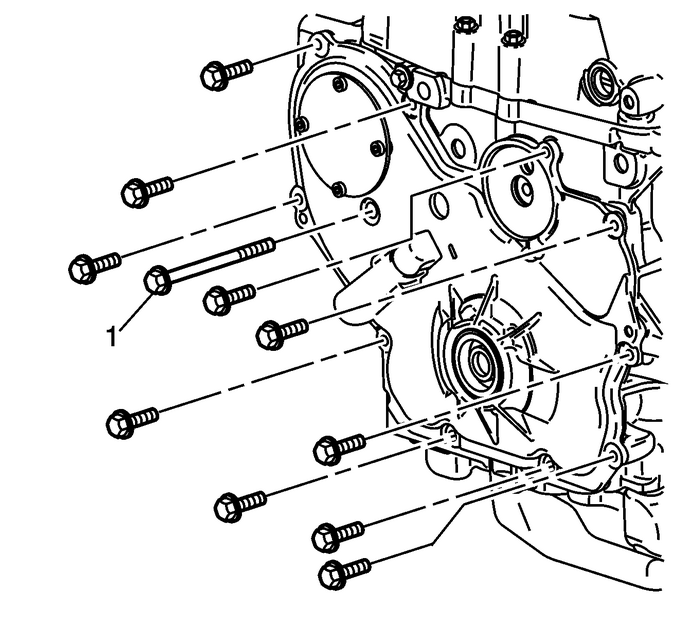

Install the engine front cover bolts and tighten to25-Y-(18-lb-ft).Install the long water pump bolt-(1) and tightento25-Y-(18-lb-ft).

Engine Front Cover and Oil Pump Installation Engine Block Cylinder Block Cyl Block Front Cover

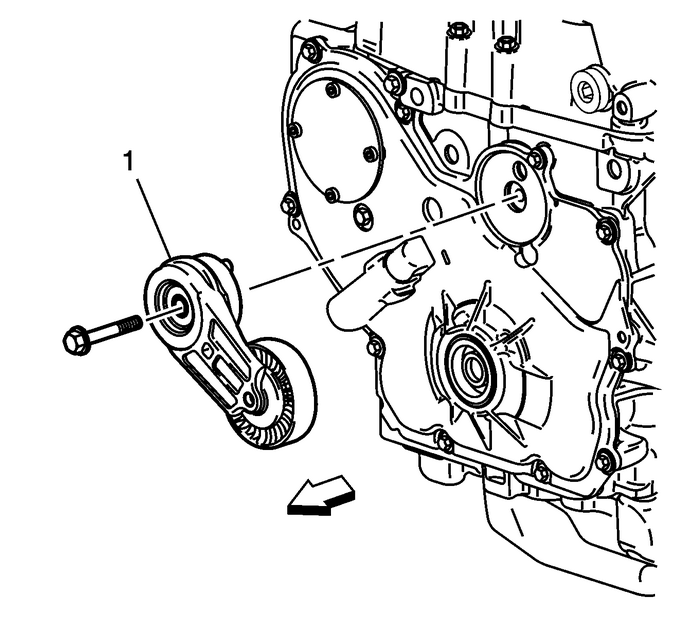

Install the accessory drive belttensioner-(1).Install the accessory drive belt tensioner bolt and tightento45-Y-(33-lb-ft).

Engine Block Assemble Engine Block
Install the cylinder block-to-cylinder head alignment dowels.Install the NEW front oil gallery expansion plug.Ensure the NEW front oil gallery expansion plug is installed to the proper depth.Install t ...

Intake Manifold Installation Intake and Forced Induction Intake Manifold
Install the NEW intake manifold gasket-(1).Install the intake manifold assembly-(2).Install the intake manifold bolts-(1).Caution:Refer toFastener Caution.Tighten the intake manifold bolts in the sequ ...
