Chevrolet Equinox Service Manual: Engine Flywheel Removal Flywheel/Flexplate

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Engine Flywheel Removal Flywheel/Flexplate

Special Tools

EN 46106 Flywheel Holding Tool

For equivalent regional tools, refer toSpecial Tools.

Engine Flywheel Removal Flywheel/Flexplate

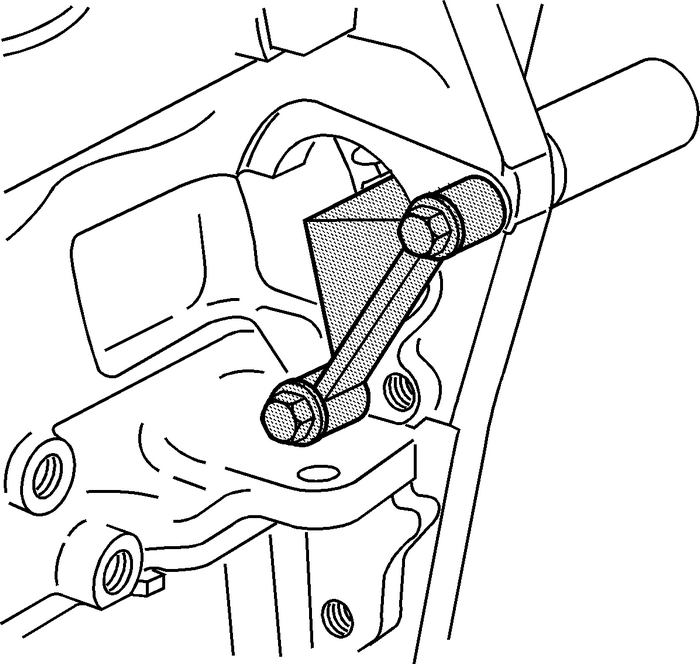

Install the EN 46106 tool through the starter mounting hole.

Engine Flywheel Removal Flywheel/Flexplate

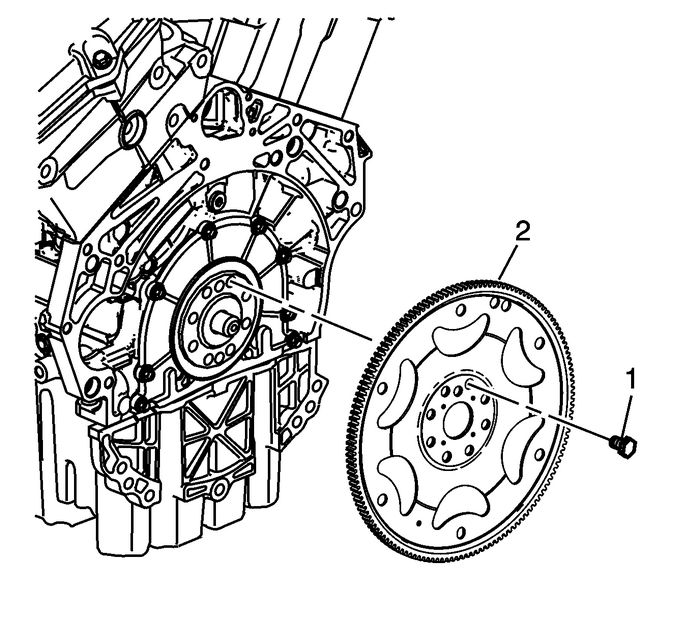

Remove the flex plate bolts-(1) and discard.Remove the flex plate-(2) from the crankshaft.

Engine Flywheel Removal Flywheel/Flexplate

Remove the EN 46106 tool.

Automatic Transmission Flex Plate Installation Manual Clutch Pressure Plate Assembly

Special ToolsEN 45059 Angle MeterEN 46106 Engine Flywheel Holding ToolFor equivalent regional tools, refer toSpecial Tools.Place the flex plate-(2) in position on the crankshaft.Caution:This vehicle i ...

Manual Shift Shaft and Seal Replacement Automatic Transmission Unit

Special ToolsJ 45201 Cooler Line Seal RemoverJ-46626 Seal InstallerRemoval ProcedureRemove the battery tray. Refer toBattery Tray Replacement.Remove the manual shaft and position switch assembly. Refe ...
