Driver or Passenger Seat Adjuster Memory Module Replacement Seats

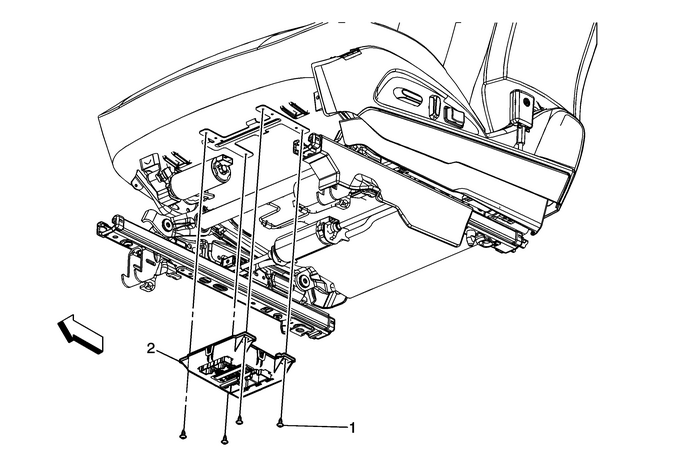

Driver or Passenger Seat Adjuster Memory Module Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver seat . Refer toDriver or Passenger Seat Removal and Installation.

1

Driver or Passenger Seat Adjuster Memory Module Fastener(Qty:-4)

Caution:Refer toFastener Caution.

Tighten

4-Y(35-lb-in)

2

Driver or Passenger Seat Adjuster Memory Module

ProcedureDisconnect the electrical connectors.Remove the module from the adjuster memory bracket.Refer toControl Module Referencesfor programing and setupinformation.
