Description

Point-to-Point Measurements are for reference only. Allmeasurements are given in millimeters. Use these measurements fordiagnosis and estimating. Point-to-Point measurements areduplicated with tram bar pointers set at equal lengths. All diemarks, holes, slots and fasteners are measured to the center. Alldimensions are symmetrical unless otherwise specified.

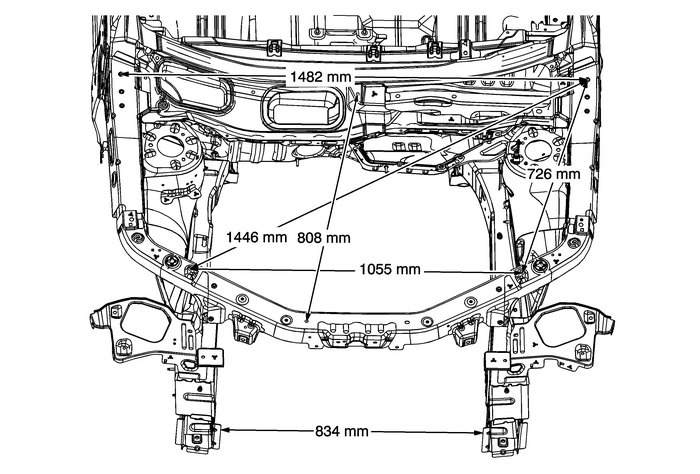

Under Hood Opening Dimensions

Dimensions - Body

._

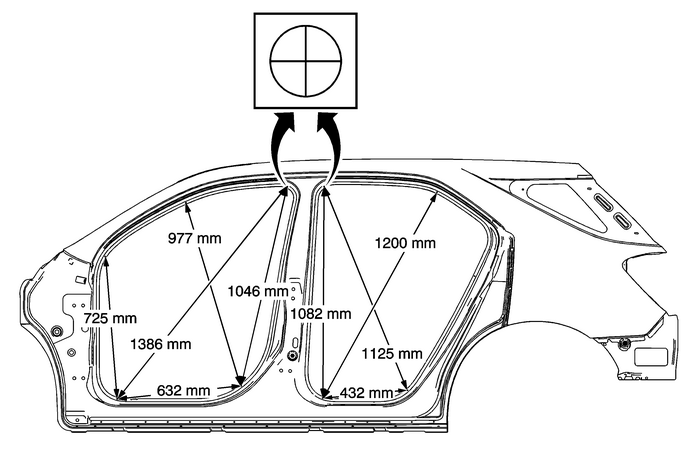

Body Side Opening Dimensions (Equinox)

Dimensions - Body

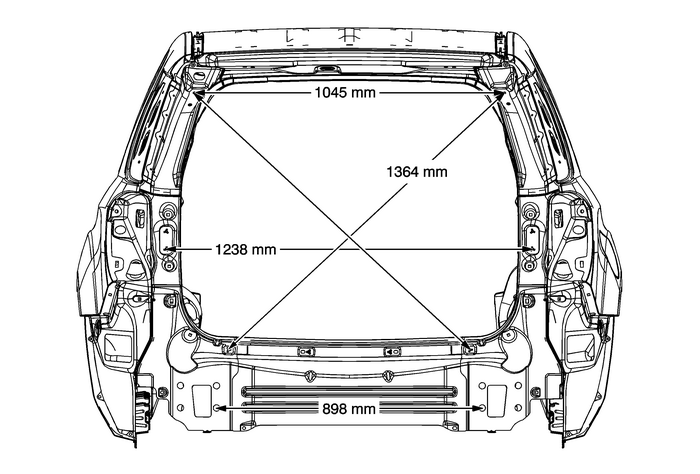

Rear Body Dimensions

Dimensions - Body
