Chevrolet Equinox Service Manual: Crankshaft Front Oil Seal Replacement Engine Block Seals and Gaskets

Chevrolet Equinox Service Manual / Powertrain / Engine / Crankshaft Front Oil Seal Replacement Engine Block Seals and Gaskets

Special Tools

EN-29184 Oil Seal Installer

For equivalent regional tools, refer toSpecial Tools.

Removal Procedure

Crankshaft Front Oil Seal Replacement Engine Block Seals and Gaskets

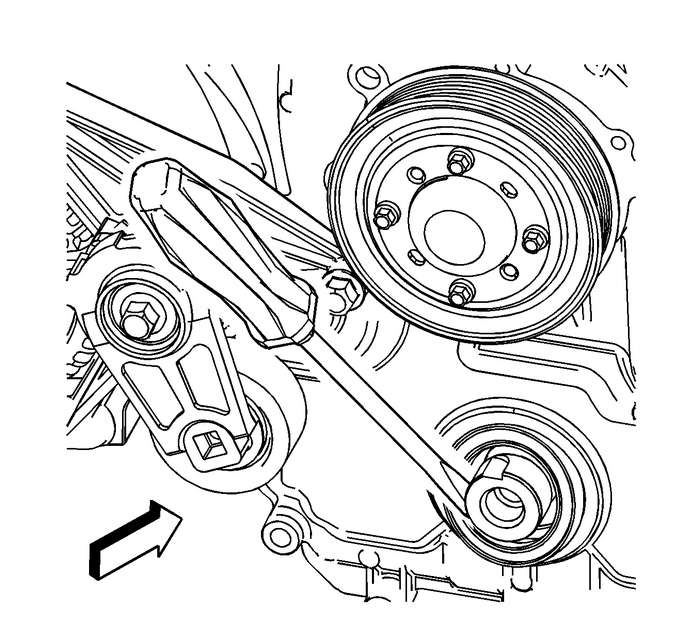

Remove the crankshaft balancer. Refer toCrankshaft Balancer Replacement.Remove the crankshaft front oil seal using a suitable flat blade tool.Installation Procedure

Crankshaft Front Oil Seal Replacement Engine Block Seals and Gaskets

Note:Do not lubricate the crankshaft front oil seal or the crankshaft balancer sealingsurfaces.

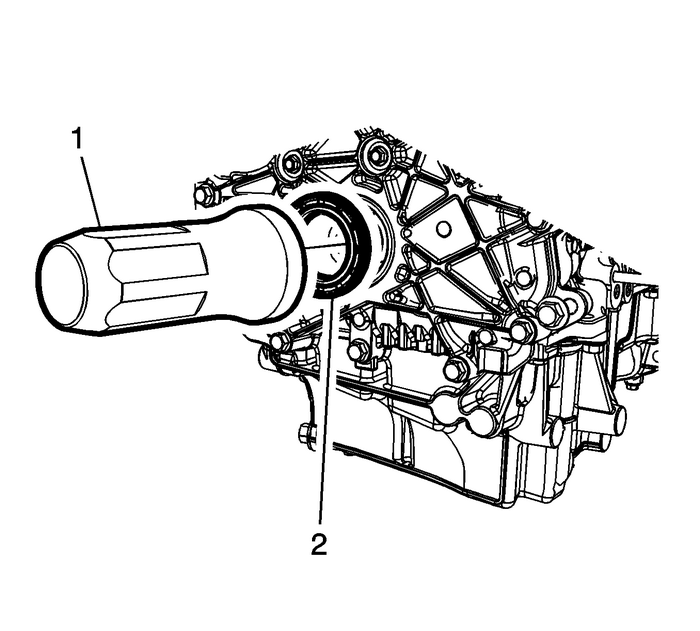

Use the EN-29184 installer-(1) or equivalent to install the crankshaft front oil seal-(2).Install the crankshaft balancer. Refer toCrankshaft Balancer Replacement.
