Coolant Recovery Reservoir Outlet Hose Replacement (LEA) Engine Cooling Reservoir Tank

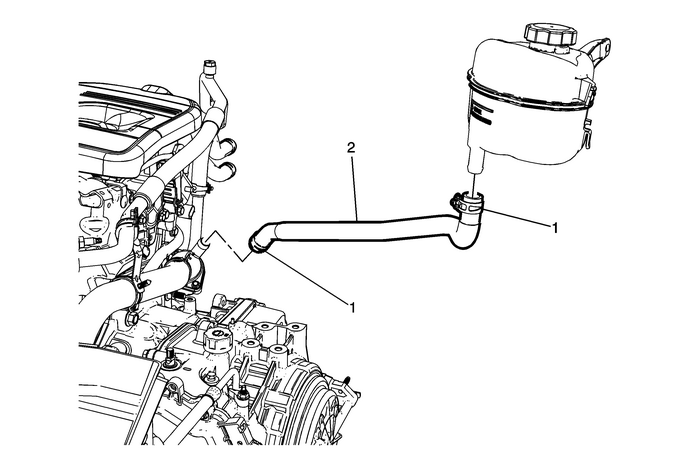

Coolant Recovery Reservoir Outlet Hose Replacement

Callout

Component Name

Preliminary ProceduresDrain the coolant. Refer toCooling System Draining and Filling.Reposition the accessory wiring junction block. Refer toAccessory Wiring Junction Block Replacement

1

Coolant Recovery Reservoir Outlet Hose Clamps(Qty-2)

Procedure

UsingJ 38185Hose Clamp Pliersreposition the coolant recovery reservoir outlet hoseclamps.

Special Tools

J 38185Hose Clamp Pliers

2

Coolant Recovery Reservoir Outlet Hose
