Removal ProcedureIf equipped with AWD, remove the exhaust manifold. Refer toExhaust Manifold Replacement.

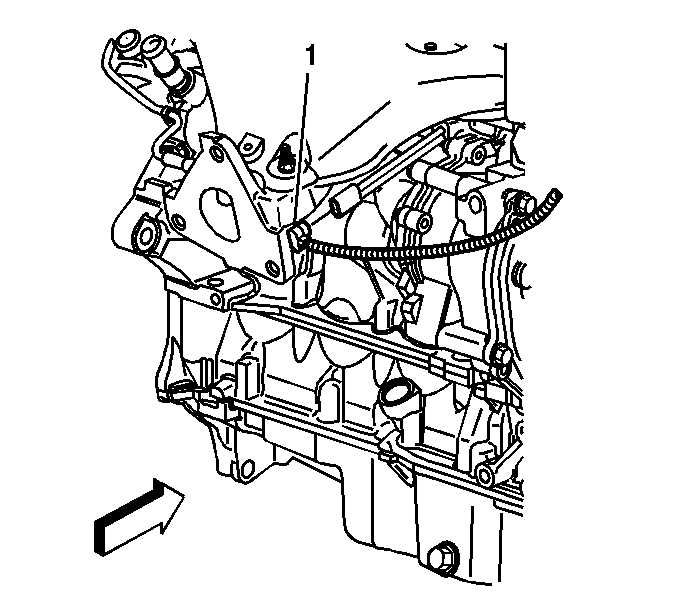

Disconnect the coolant heater cord-(1).

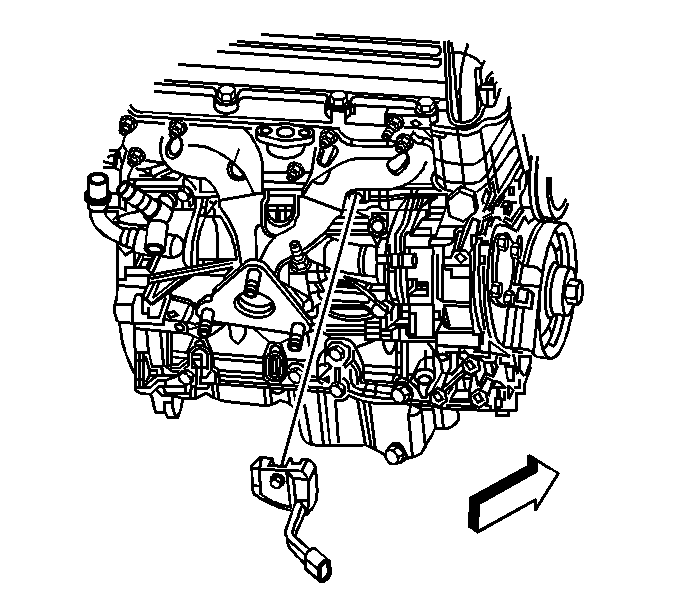

Remove the coolant heater bolt.Remove the coolant heater.Installation Procedure
Install the coolant heater.
Caution:Refer toFastener Caution.
Install the coolant heater bolt and tighten to 10-Y (89-lb-in).Connect the coolant heater cord-(1).If equipped with AWD, install the exhaust manifold. Refer toExhaust Manifold Replacement.
