Chevrolet Equinox Service Manual: Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Removal ProcedureRemove the battery tray. Refer toBattery Tray Replacement.

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

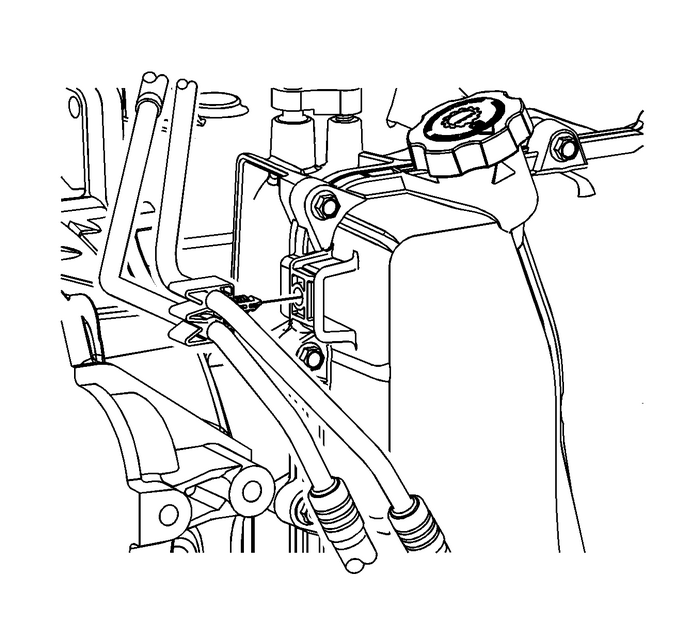

Remove the oil cooler inlet and outlet hoses from theretainer on the control valve body cover.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the front transmission mount. Refer toTransmission Front Mount Replacement.Remove the lower nuts from the left transmission mount. RefertoTransmission Mount Replacement - Left Side.Drain the transmission. Refer toTransmission Fluid Drain and Fill.

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

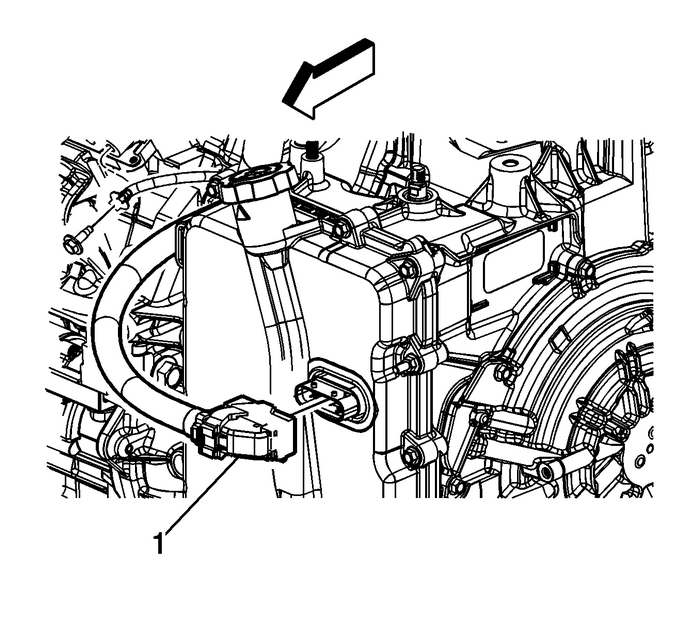

Disconnect the control valve body transmission control module(TCM) electrical connector-(1).

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

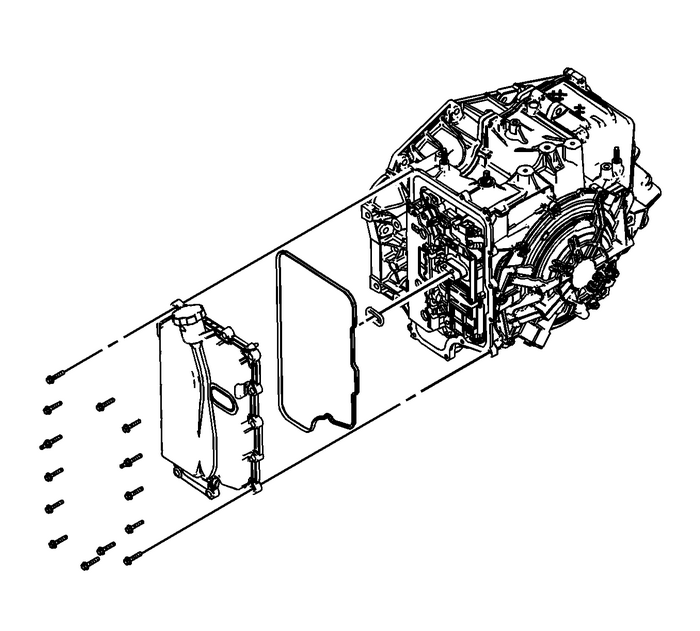

Remove the 2-control valve body cover studs M6 x30.Remove the 12-control valve body cover bolts M6 x30.Support the transmission with a transmission jack.Using the transmission jack raise the transmission to gainclearance for removal of the control valve body cover.Remove the control valve body cover.Remove the control valve body cover gasket.

Caution:Support the control solenoid valve assembly around theconnector when removing the seal. Excessive pulling force candamage the internal electrical connections.

Remove the control valve body cover wiring connector holeseal.Remove all traces of the old gasket material. Clean thetransmission case and control valve body cover gasketsurfaces.Installation Procedure

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Note:The holes in the control valve body cover wiring connectorhole seal must face toward the control solenoid valve assembly. Ifthe holes face toward the valve body cover, there is a potentialfor a leak around the seal.

Install the control valve body cover wiring connector holeseal.Install the control valve body cover gasket to the controlvalve body cover.Install the control valve body cover.Lower the transmission and remove the transmissionjack.

Caution:Refer toFastener Caution.

Note:Install all control valve body cover bolts and studs by handthen torque all bolts and studs in sequence.

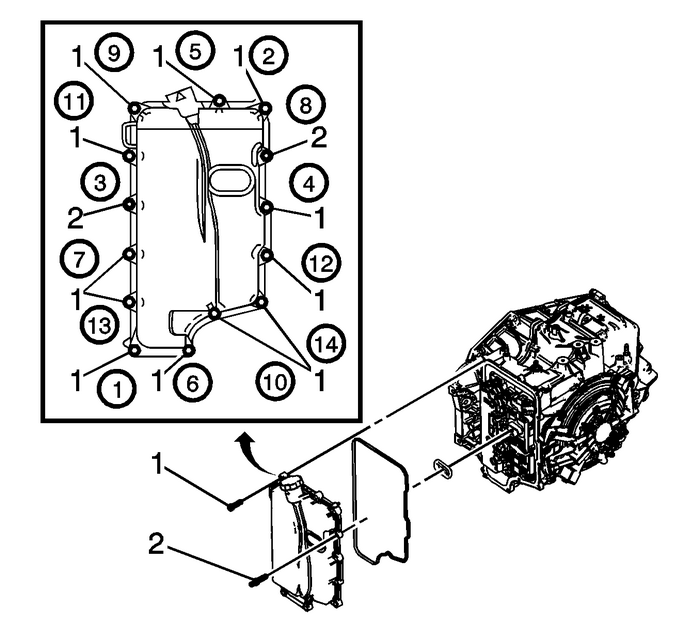

Install the 12-control valve body coverbolts-(1) M6 x 30 and tighten the bolts in sequence to12-Y(106-lb-in).Install the 2-control valve body coverstuds-(2) M6 x 30 and tighten the studs in sequence to12-Y(106-lb-in).

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Connect the control valve body TCM electricalconnector-(1).Install the lower nuts to the left transmission mount. RefertoTransmission Mount Replacement - Left Side.Install the front transmission mount. Refer toTransmission Front Mount Replacement.Lower the vehicle.

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Install the oil cooler inlet and outlet hoses to the retaineron the control valve body cover.Install the battery tray. Refer toBattery Tray Replacement.Fill the transmission. Refer toTransmission Fluid Drain and Fill.Check for leaks.
