Chevrolet Equinox Service Manual: Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Removal ProcedureDisconnect the negative battery cable. Refer toBattery Negative Cable Disconnection and Connection.Disconnect the radiator outlet hose from the radiator. RefertoRadiator Outlet Hose Replacement.

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

.1

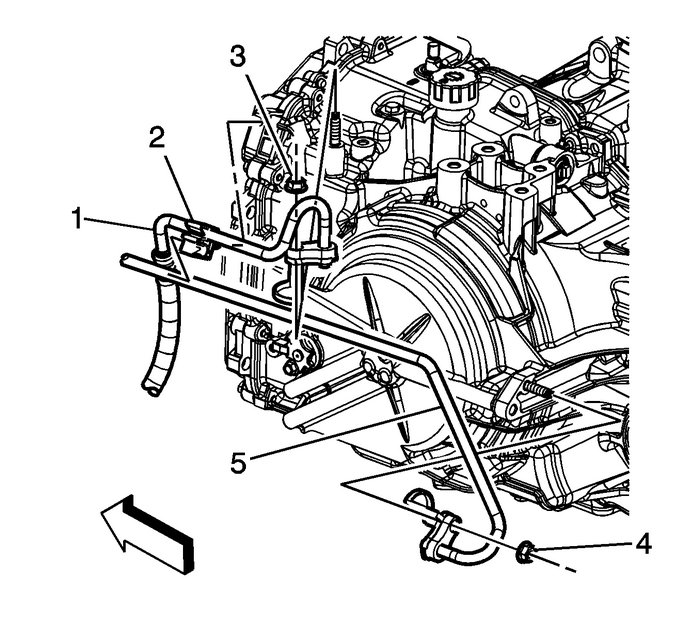

Remove the oil cooler inlet-(1) andoutlet-(2) hoses from the retainer-(2) on thecontrol valve body cover.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the front transmission mount. Refer toTransmission Front Mount Replacement.Drain the transmission. Refer toTransmission Fluid Drain and Fill.

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

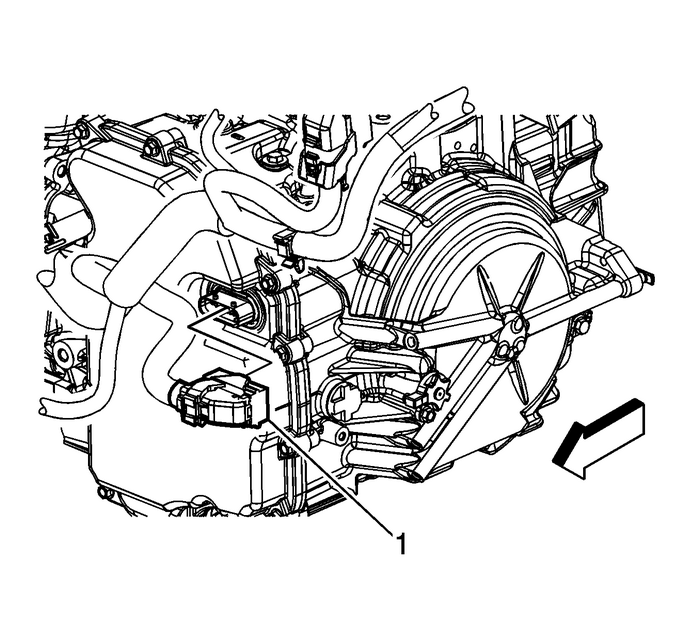

Disconnect the control valve body transmission control module(TCM) electrical connector-(1), then the wiring harnessfrom the cover.

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Remove the control valve body coverbolts-(1).Support the transmission with a transmission jack.Using the transmission jack raise the transmission to gainclearance for removal of the control valve body cover.Remove the control valve body cover.Remove the control valve body cover gasket.

Caution:Support the control solenoid valve assembly around theconnector when removing the seal. Excessive pulling force candamage the internal electrical connections.

Remove the control valve body cover wiring connector holeseal.Remove all traces of the old gasket material. Clean thetransmission case and control valve body cover gasketsurfaces.Installation Procedure

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

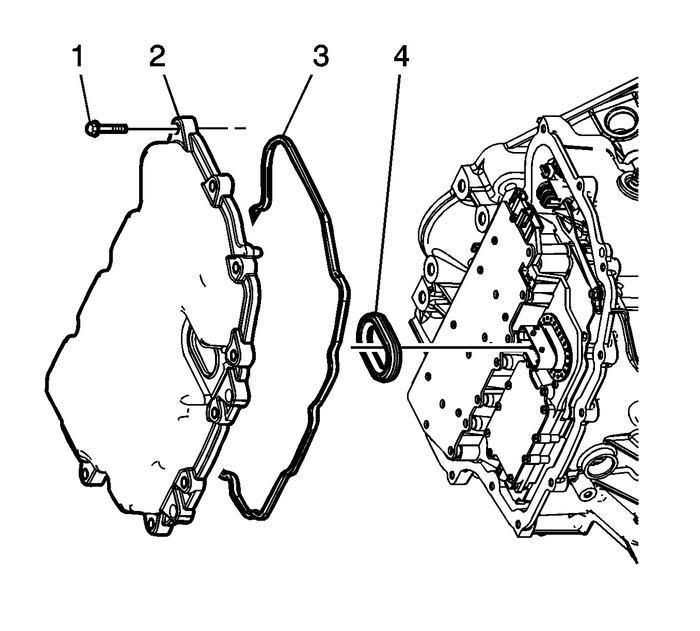

Install the control valve body cover wiring connector holeseal-(4).Install the control valve body cover gasket-(3) tothe control valve body cover.Install the control valve body cover-(2).Lower the transmission and remove the transmissionjack.Hand start the control valve body coverbolts-(1).

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Caution:Refer toFastener Caution.

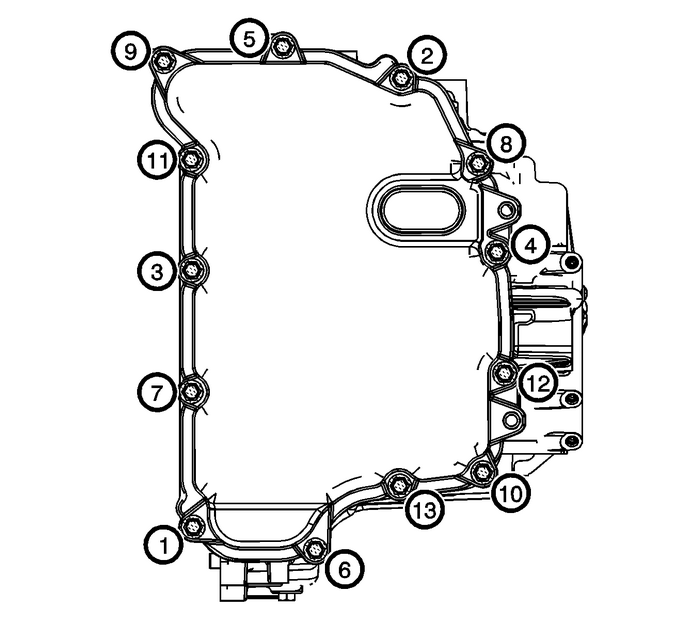

Note:Install all control valve body cover bolts and studs by handthen torque all bolts and studs in sequence.

Install the control valve body cover bolts. Tighten the boltsin sequence to12-Y(106-lb-in).

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

Connect the control valve body TCM electricalconnector-(1), then clip the wiring harness to thecover.Install the front transmission mount. Refer toTransmission Front Mount Replacement.Lower the vehicle.

Control Valve Body Cover Replacement Automatic Transmission Unit Control Valve Body

.1

Install the oil cooler inlet-(1) andoutlet-(5) hoses to the retainer-(2) on thecontrol valve body cover.Connect the radiator outlet hose to the radiator. Refer toRadiator Outlet Hose Replacement.Connect the negative battery cable. Refer toBattery Negative Cable Disconnection and Connection.Fill the transmission. Refer toTransmission Fluid Drain and Fill.Check for leaks.
