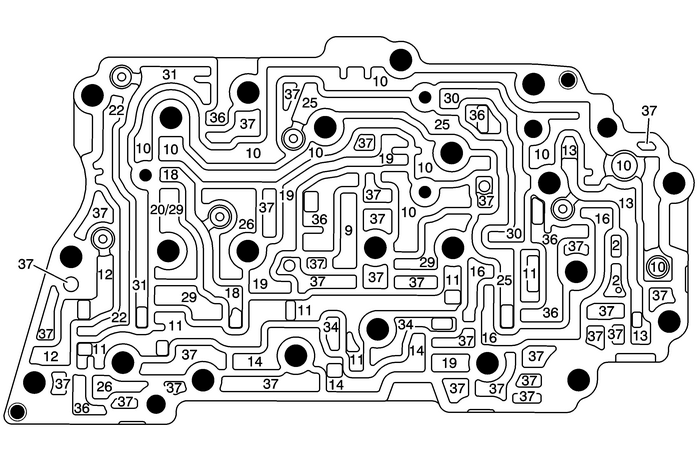

Channel Plate-–-ControlValve Body Side
| (2) | Line |
| (9) | Regulated Apply |
| (10) | Exhaust Backfill |
| (11) | Actuator Feed Limit |
| (12) | PCS Line |
| (13) | PCS R1/456 Clutch |
| (14) | Shift Solenoid |
| (16) | R1/456 Clutch Feedback |
| (18) | PCS 35 Reverse Clutch |
| (19) | Reverse |
| (20) | 35 Reverse Clutch Feed |
| (22) | Default |
| (25) | PCS 1234 Clutch |
| (26) | Drive |
| (29) | Drive 1-6 |
| (30) | Latch |
| (31) | PCS 26 Clutch |
| (34) | PCS TCC |
| (36) | Exhaust |
| (37) | Void |
Channel Plate - Control Solenoid (w/Body and TCM) Valve Assembly Side Automatic Transmission Unit
Channel Plate-–-ControlSolenoid (w/Body and TCM) Valve Assembly Side(2)Line(11)Actuator Feed Limit(12)PCS Line(13)PCS R1/456 Clutch(14)Shift Solenoid(18)PCS 35 Reverse Clutch(25)PCS 1234 Clutch(31)P ...
Channel Plate to Valve Body Spacer Plate Assembly - Channel Plate Side Automatic Transmission Unit
Channel Plate to Valve Body Spacer PlateAssembly-–-Channel PlateSide(2)Line(9)Regulated Apply(10)Exhaust Backfill(11)Actuator Feed Limit(12)PCS Line(13)PCS R1/456 Clutch(14)Shift Solenoid(15)R1/456 ...
