Catalytic Converter Replacement (LEA) Emissions Catalytic Converter

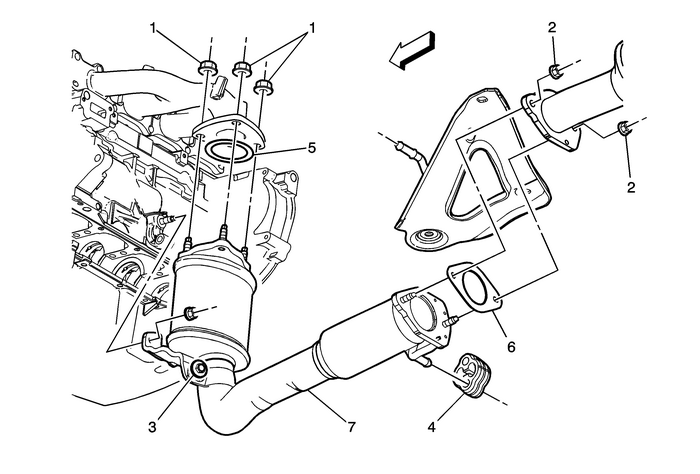

Catalytic Converter Replacement

Callout

Component Name

Warning:Refer toHot Exhaust System Warning.

Preliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the exhaust manifold. Refer toExhaust Manifold Replacement.Remove the oxygen sensor after the catalytic converter. Refer toHeated Oxygen Sensor Replacement - Sensor 2.Remove the catalytic converter brace. Refer toCatalytic Converter Brace Replacement.Remove the steering gear heat shield. Refer toSteering Gear Heat Shield Replacement.

1

Exhaust Manifold Fastener (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

50-Y (37-lb-ft).

2

Exhaust Muffler Fastener (Qty:-2)

Tighten

40-Y (30-lb-ft).

3

Catalytic Converter Bracket Clamp Fastener

Tighten

50-Y (37-lb-ft).

4

Exhaust Insulator Hanger

5

Seal

6

Gasket

7

Catalytic Converter

Note:Replace with NEW gasket and seal.
