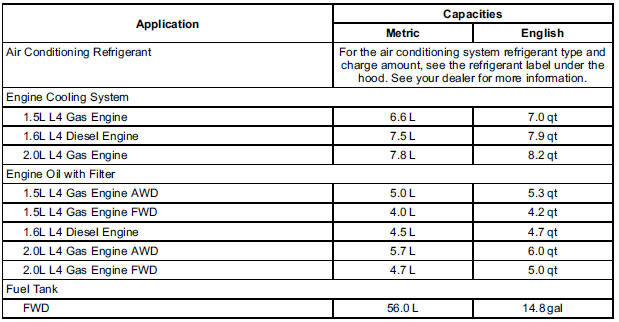

Chevrolet Equinox Owners Manual: Capacities and Specifications

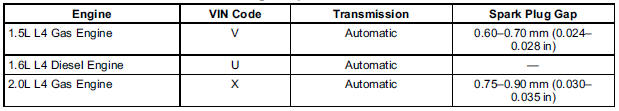

Vehicle Data

...

Engine Drive Belt Routing

1.5L L4 Gas Engine 1.6L L4 Diesel Engine 2.0L L4 Gas Engine ...

Other materials:

Camshaft Timing Chain, Sprocket, and Tensioner Installation (LAF, LEA, or LUK) Valvetrain Valvetrain Timing
Special ToolsEN-45027 Tensioner ToolEN 45059 Angle MeterEN-48953 Camshaft Actuator Locking ToolFor equivalent regional tools, refer toSpecial Tools.Note:The engine is timed top-dead center exhaust stroke.Ensure the intake camshaft notch is in the 10-o'clock position-(2) and the exhaustcamshaft notch ...
