Chevrolet Equinox Service Manual: Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Chevrolet Equinox Service Manual / Powertrain / Engine / Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Table 1: Secondary Camshaft Drive Chain Components Removal - Right Side
Table 2: Primary Camshaft Drive Chain Components Removal
Table 3: Secondary Camshaft Drive Chain Components Removal - Left Side

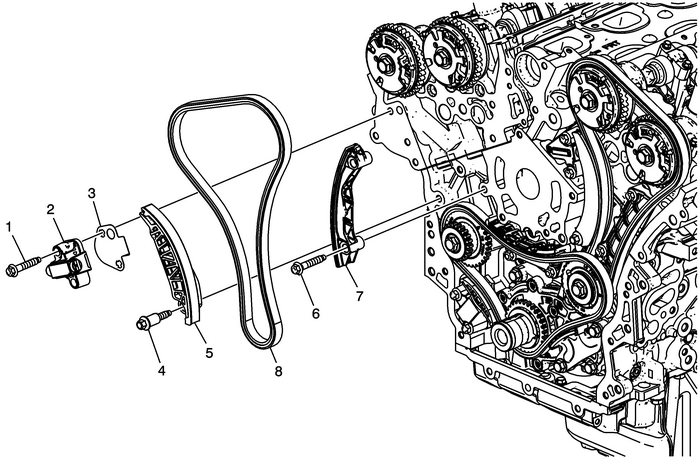

Secondary Camshaft Drive Chain Components Removal - Right Side

Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Secondary Camshaft Drive Chain Components Removal - Right Side

Callout

Component Name

1

Right Secondary Camshaft Drive Chain Tensioner Bolt

2

Right Secondary Camshaft Drive Chain Tensioner

3

Right Secondary Camshaft Drive Chain Tensioner Gasket

Note:Discard the gasket.

4

Right Secondary Camshaft Drive Chain Shoe Bolt

5

Right Secondary Camshaft Drive Chain Shoe

6

Right Secondary Camshaft Drive Chain Guide Bolt

7

Right Secondary Camshaft Drive Chain Guide

8

Right Secondary Camshaft Drive Chain

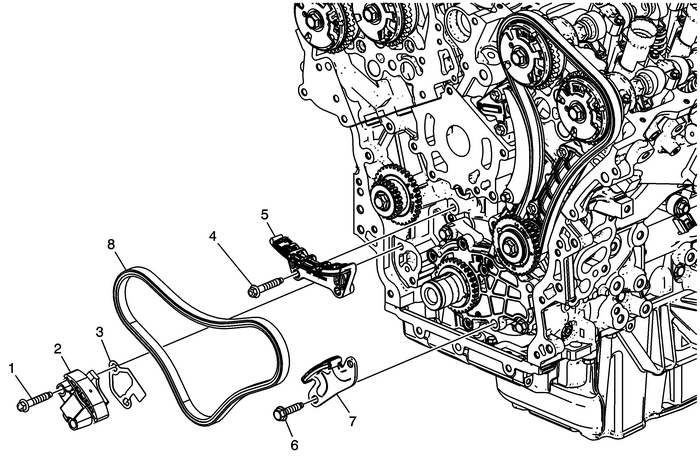

Primary Camshaft Drive Chain Components Removal

Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Primary Camshaft Drive Chain Components Removal

Callout

Component Name

1

Primary Camshaft Drive Chain Tensioner Bolt

2

Primary Camshaft Drive Chain Tensioner

3

Primary Camshaft Drive Chain Tensioner Gasket

Note:Discard the gasket.

4

Primary Camshaft Drive Chain Upper Guide Bolt

5

Primary Camshaft Drive Chain Upper Guide

6

Primary Camshaft Drive Chain Lower Guide Bolt

7

Primary Camshaft Drive Chain Lower Guide

8

Primary Camshaft Drive Chain

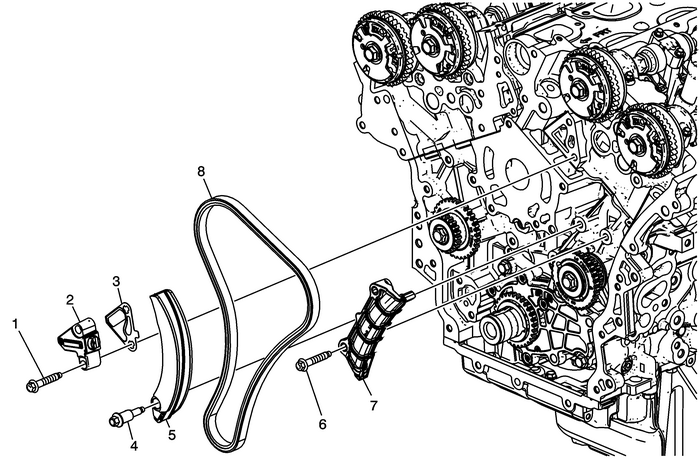

Secondary Camshaft Drive Chain Components Removal - Left Side

Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Secondary Camshaft Drive Chain Components Removal - Left Side

Callout

Component Name

1

Left Secondary Camshaft Drive Chain Tensioner Bolt

2

Left Secondary Camshaft Drive Chain Tensioner

3

Left Secondary Camshaft Drive Chain Tensioner Gasket

Note:Discard the gasket.

4

Left Secondary Camshaft Drive Chain Shoe Bolt

5

Left Secondary Camshaft Drive Chain Shoe

6

Left Secondary Camshaft Drive Chain Guide Bolt

7

Left Secondary Camshaft Drive Chain Guide

8

Left Secondary Camshaft Drive Chain
