Chevrolet Equinox Service Manual: Camshaft Cover Assemble Valvetrain Camshaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Camshaft Cover Assemble Valvetrain Camshaft

Special ToolsDT 5590Bearing and Seal DriverJ-25254-AOil Seal Installer

For equivalent regional tools, refer toSpecial Tools.

Left Camshaft Cover

Camshaft Cover Assemble Valvetrain Camshaft

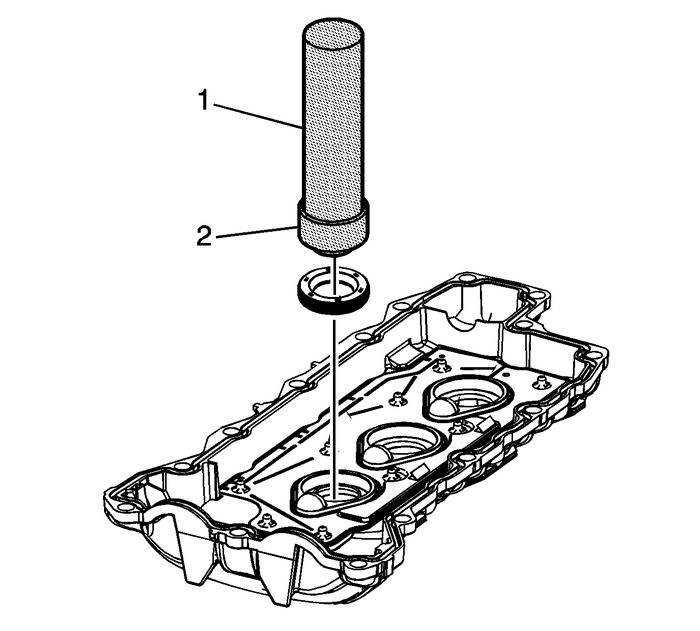

Install the NEW left spark plug shield tube seals using theDT 5590driver-(1) andJ-25254-Ainstaller-(2) .

Camshaft Cover Assemble Valvetrain Camshaft

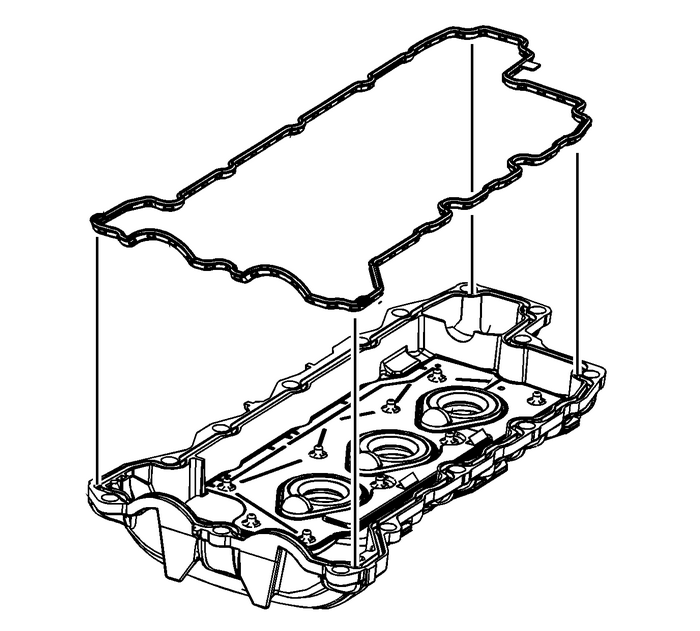

Install the NEW left camshaft cover gasket.

Camshaft Cover Assemble Valvetrain Camshaft

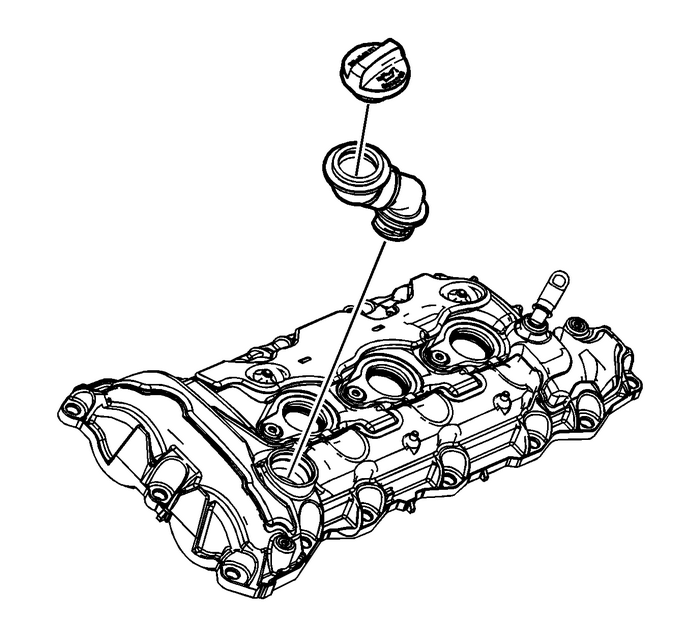

Install the oil fill cap.

Camshaft Cover Assemble Valvetrain Camshaft

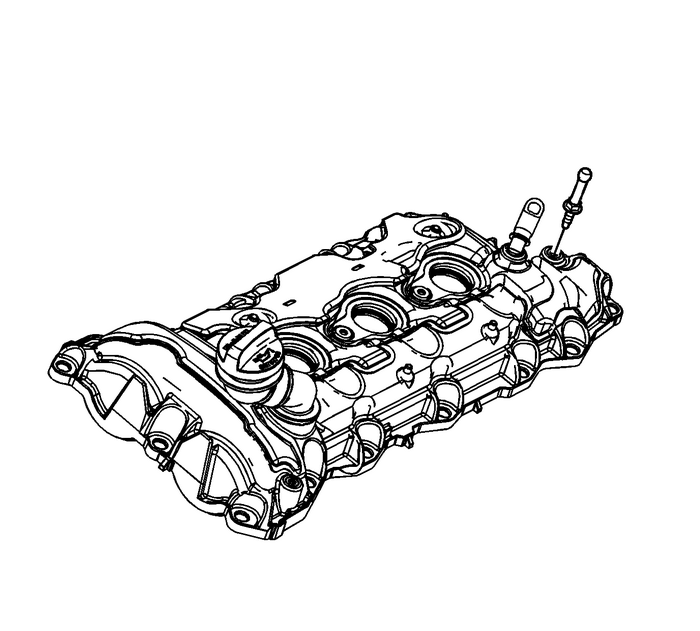

Caution:Refer toFastener Caution.

Install the fuel injector sight shield cover ballstud andtighten to10-Y(89-lb-in).

Camshaft Cover Assemble Valvetrain Camshaft

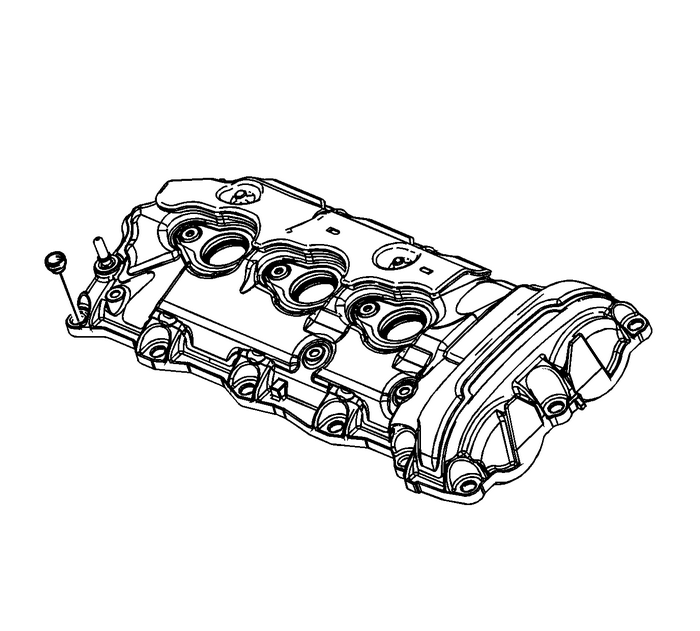

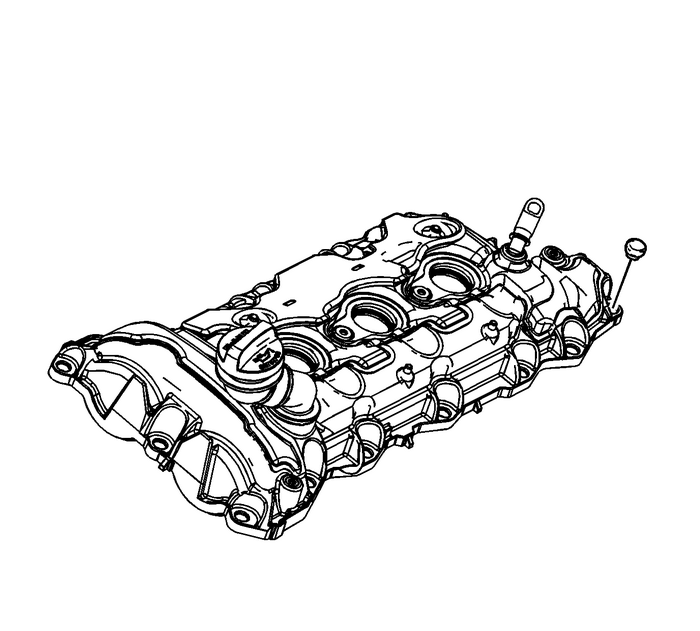

Note:The camshaft cover bolt grommet must be installed into thecamshaft cover bolt hole before installing the camshaft coverbolt.

Install the NEW left camshaft cover bolt grommets.Right Camshaft Cover

Camshaft Cover Assemble Valvetrain Camshaft

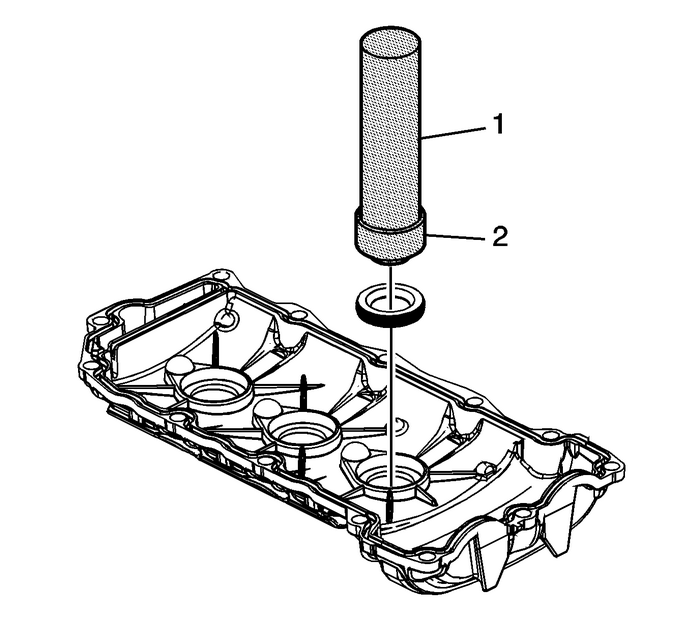

Install the NEW right spark plug shield tube coil seals usingtheDT 5590driver-(1) andJ-25254-Ainstaller-(2) .

Camshaft Cover Assemble Valvetrain Camshaft

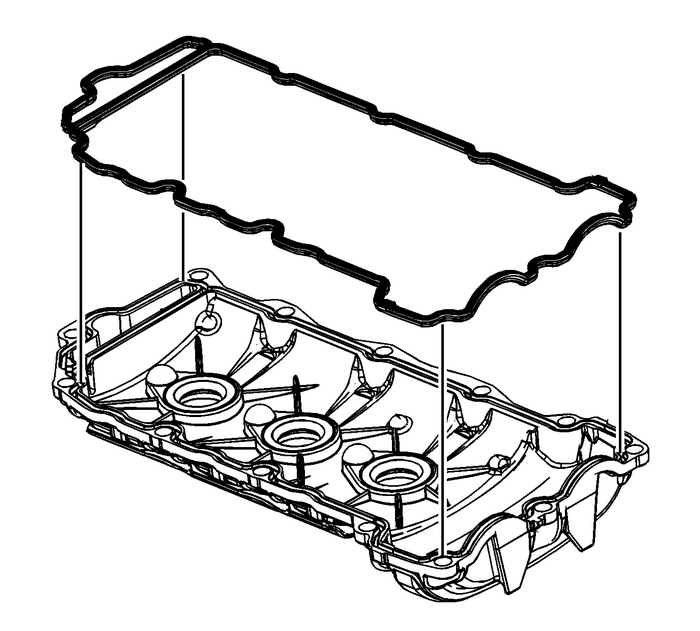

Install the NEW right camshaft cover gasket.

Camshaft Cover Assemble Valvetrain Camshaft

Note:The camshaft cover bolt grommet must be installed into thecamshaft cover bolt hole before installing the camshaft coverbolt.

Install the NEW right camshaft cover bolt grommets.
