Body Control Module Replacement

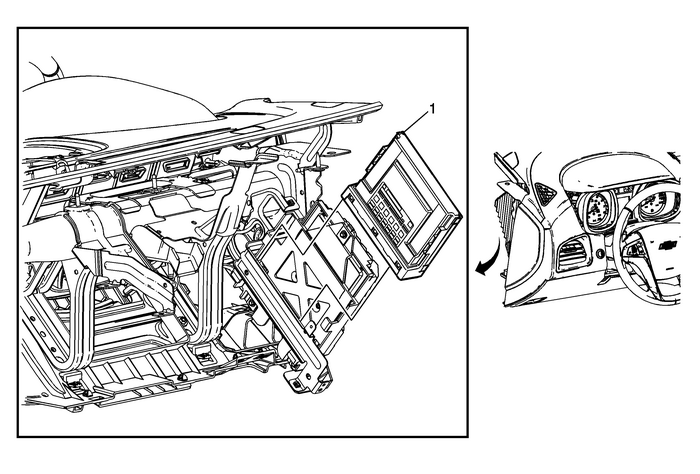

Callout

Component Name

Preliminary ProcedureRemove the drivers side insulator panel. Refer toInstrument Panel Insulator Panel Replacement - Left SideRemove the driver knee bolster reinforcement. Refer toDriver Knee Bolster Reinforcement Replacement

1

Body Control Module

ProcedureDisconnect the electrical connectors.Depress the tab on the bracket and slide the moduleforward.Reprogram the module if replaced. Refer toControl Module References.
