Chevrolet Equinox Owners Manual: Battery Replacement

Replace the battery if the REPLACE BATTERY IN REMOTE KEY message displays in the DIC.

Caution When replacing the battery, do not touch any of the circuitry on the transmitter. Static from your body could damage the transmitter.

The battery is not rechargeable. To replace the battery:

Battery Replacement

  1. Press the button on the side of the transmitter and pull the key out.

Battery Replacement

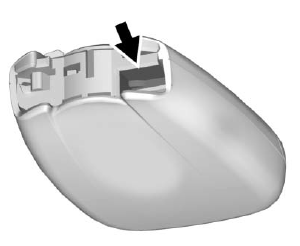

  1. Separate the two halves of the transmitter using a flat tool inserted into the area near the key slot.

Battery Replacement

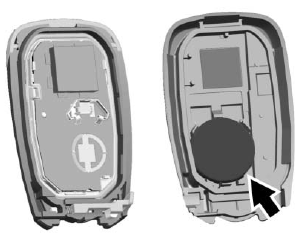

  1. Remove the battery by pushing on the battery and sliding it toward the bottom of the transmitter.
  2.  Insert the new battery, positive side facing the back cover.

    Push the battery down until it is held in place. Replace with a CR2032 or equivalent battery.

  3.  Snap the battery cover back on to the transmitter.
Starting the Vehicle with a Low Transmitter Battery
When the vehicle is started, if the transmitter battery is weak, the DIC may display NO REMOTE DETECTED or NO REMOTE KEY WAS DETECTED PLACE KEY IN TRANSMITTER POCKET THEN START YOUR VEHICLE. The ...

Remote Vehicle Start
The vehicle may have this feature that allows you to start the engine from outside the vehicle. : This button will be on the RKE transmitter if the vehicle has remote start. The climate con ...
