Battery Heat Shield Replacement Exhaust Exhaust Heat Shields

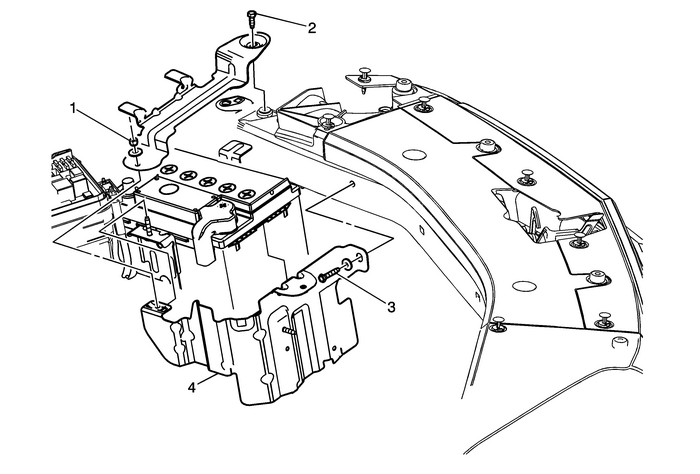

Battery Heat Shield Replacement

Callout

Component Name

Preliminary ProcedureRemove the front bumper fascia opening cover. Refer toFront Bumper Fascia Opening Cover ReplacementDisconnect the negative battery cable. Refer toBattery Negative Cable Disconnection and Connection.Remove the engine control module (ECM). Refer toEngine Control Module Replacement.Remove the air conditioning compressor hose retaining nut from the side of the batteryheat shield and reposition the retaining clamp.

1

Nut

Warning:Refer toExhaust Service Warning.

Caution:Refer toFastener Caution.

Tighten

9-Y (80-lb-in).

2

Bolt

Tighten

9-Y (80-lb-in).

3

Bolt

Tighten

9-Y (80-lb-in).

4

Battery Heat Shield

Lubrication Description
