Chevrolet Equinox Service Manual: Balance Shaft Installation Engine Block Cylinder Block Balance Shaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Balance Shaft Installation Engine Block Cylinder Block Balance Shaft

Note:This procedure is not used in Europe.

Special Tools

EN-43650 Balance Shaft Bushing Remover/Installer

For equivalent regional tools, refer toSpecial Tools.

Balance Shaft Installation Engine Block Cylinder Block Balance Shaft

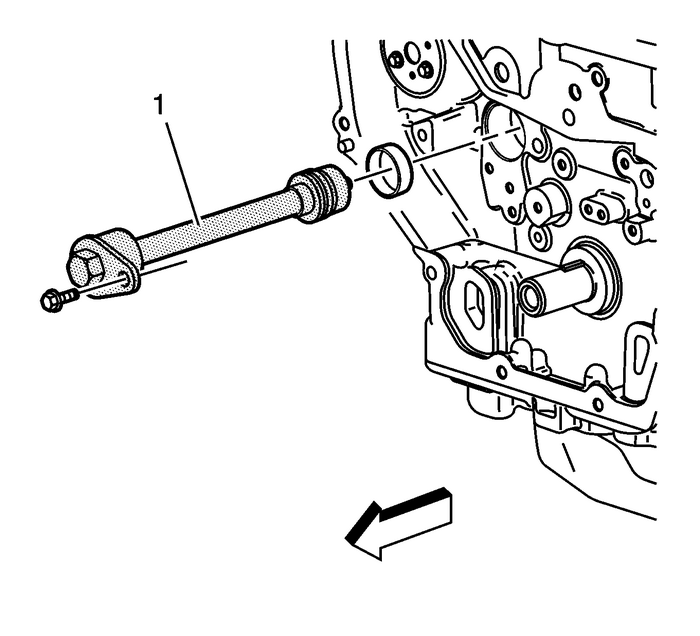

Install the balance shaft bushing using the EN-43650 installer-(1).

Balance Shaft Installation Engine Block Cylinder Block Balance Shaft

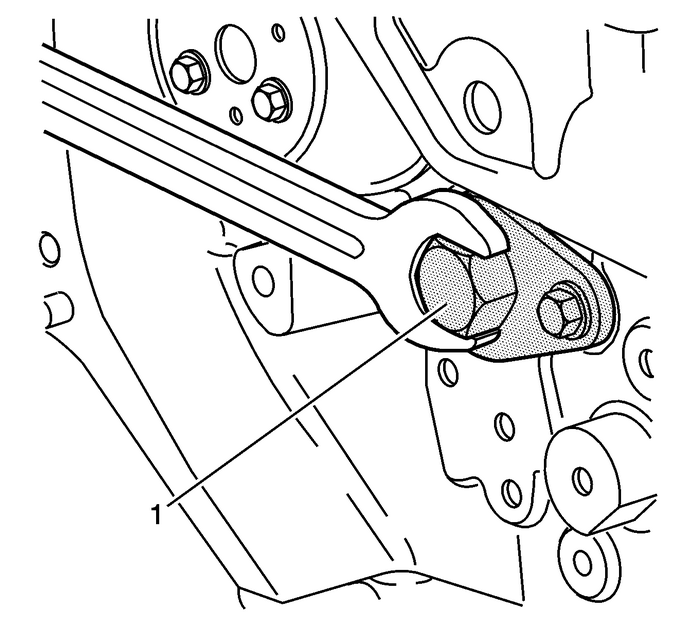

Seat the balance shaft bushing into the bore using the EN-43650 installer-(1) and a wrench.When the EN-43650 installeris fully seated in the engine block, remove it with a wrench.

Balance Shaft Installation Engine Block Cylinder Block Balance Shaft

Note:If the balance shafts are not properly timed to the engine, the engine may vibrateor make noise.

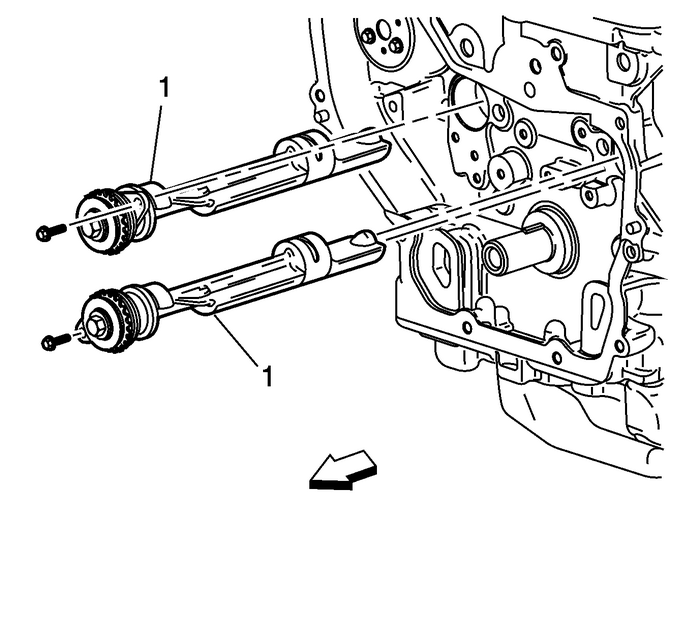

Place the number one piston at top dead center (TDC).Lubricate the balance shaft lobes with engine oil.Install the balance shafts-(1) into their bores.

Caution:Refer toFastener Caution.

Install the balance shaft retaining bolts and tighten to 10-Y -(89-lb-in).
