Airbag Instrument Panel Module Replacement (Terrain) Secondary Air Bag Modules

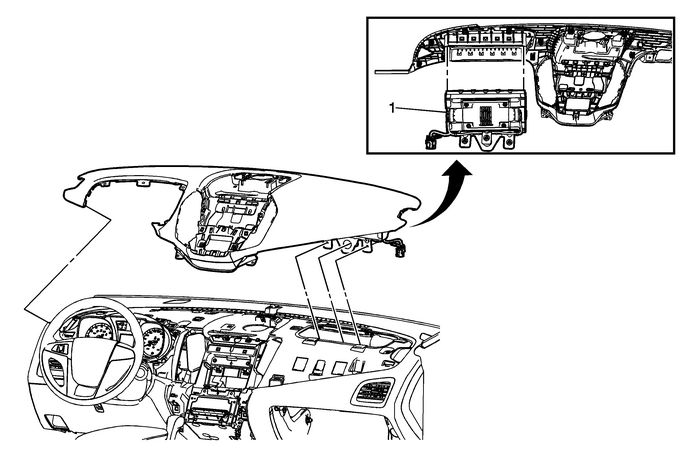

Airbag Instrument Panel Module Replacement

Callout

Component Name

Warning:Refer toSIR Inflator Module Handling and Storage Warning.

Warning:Refer toSIR Warning.

Preliminary ProceduresDisable the SIR system. Refer toSIR Disabling and Enabling.Remove the instrument panel upper trim panel. Refer toInstrument Panel Upper Trim Panel Replacement.

1

Instrument Panel Inflatable Restraint Module

Procedure

Refer toInflatable Restraint Module Handling and Scrapping.
