Air Inlet Grille Panel Extension Replacement (Terrain) Front Grille

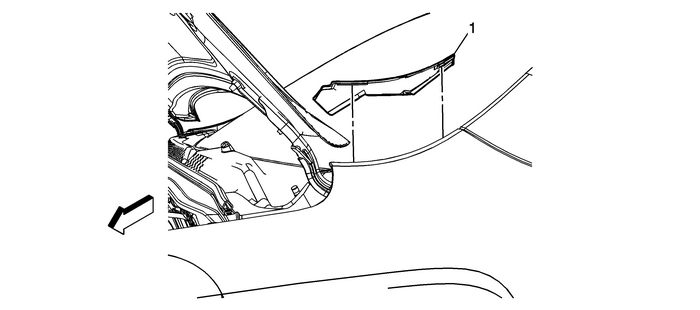

Air Inlet Grille Panel Extension Replacement

Callout

Component Name

Preliminary Procedure

Open and support hood in order to access the air inlet grillepanel extension.

1

Air Inlet Grille Panel Extension

ProcedureRelease the tabs securing the air inlet grille panelextension to the rear upper fender flange and air inletgrille.Disengage the rearward edge of the extension from under thetop edge of the fender flange.Remove the air inlet grille panel extension from thevehicle.
