Chevrolet Equinox Service Manual: Air Conditioning Evaporator Thermal Expansion Valve Hose Replacement Expansion Valve/Orifice Tube

Chevrolet Equinox Service Manual / HVAC / Cooling / Air Conditioning Evaporator Thermal Expansion Valve Hose Replacement Expansion Valve/Orifice Tube

Special Tools

J 39400-A Halogen Leak Detector

Removal ProceduresRecover the refrigerant. Refer toRefrigerant Recovery and Recharging.

Air Conditioning Evaporator Thermal Expansion Valve Hose Replacement Expansion Valve/Orifice Tube

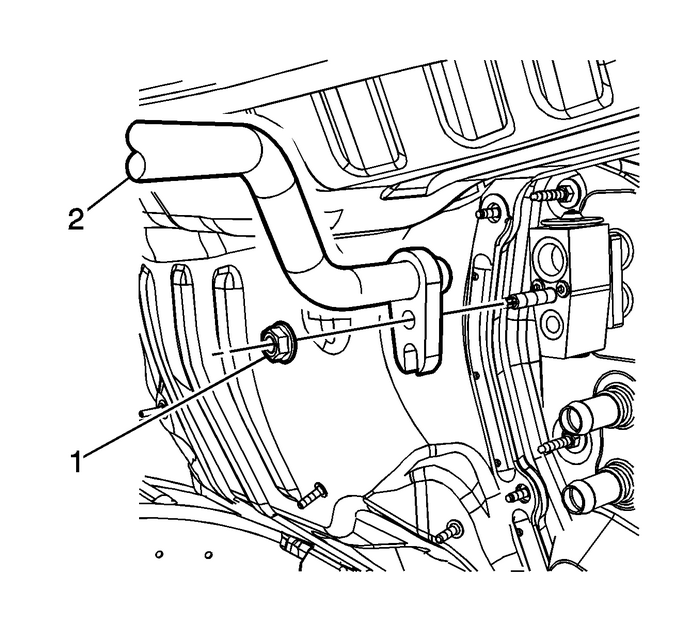

Remove the air conditioning compressor hose nut-(1) from the air conditioning evaporatorthermal expansion valve tube hose.Remove the air conditioning compressor hose from the air conditioning evaporator thermalexpansion valve tube hose.Remove the compressor hose retainer nut-(2) from the battery box.

Air Conditioning Evaporator Thermal Expansion Valve Hose Replacement Expansion Valve/Orifice Tube

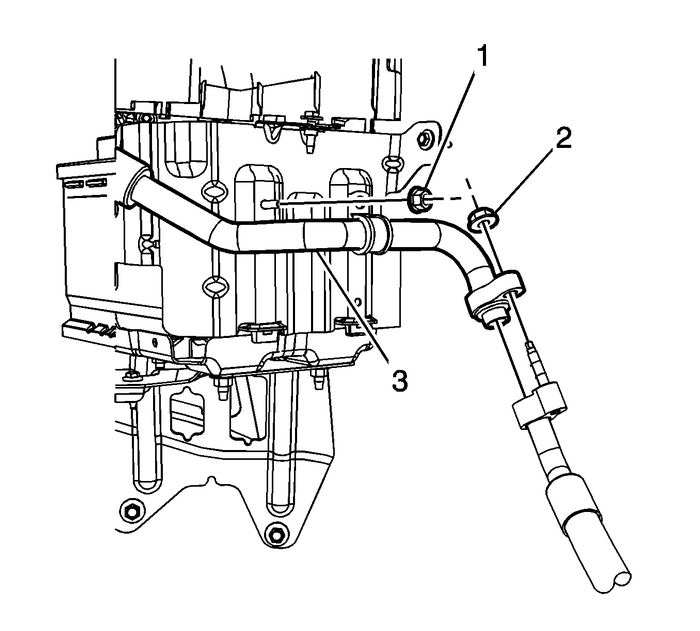

Remove the air conditioning evaporator thermal expansion valve tube hose nut-(1) fromthe thermal expansion valve.Remove the air conditioning evaporator thermal expansion valve tube hose-(2) fromthe vehicle.Remove and discard the sealing washers from the air conditioning evaporator thermalexpansion valve tube hose. Refer toAir Conditioning System Seal Replacement.Installation Procedure

Air Conditioning Evaporator Thermal Expansion Valve Hose Replacement Expansion Valve/Orifice Tube

Install new seal washers to the air conditioning evaporator thermal expansion valvetube hose. Refer toAir Conditioning System Seal Replacement.Position the air conditioning evaporator thermal expansion valve tube hose in thevehicle.Install the air conditioning evaporator thermal expansion valve tube hose-(2) to thethermal expansion valve.Install the air conditioning evaporator thermal expansion valve tube hose nut-(1)to the thermal expansion valve and tighten the nut to 22-Y (16-lb-ft).

Air Conditioning Evaporator Thermal Expansion Valve Hose Replacement Expansion Valve/Orifice Tube

Install a new sealing washer to the air conditioning evaporator thermal expansionvalve tube hose at the ccompressor hose. Refer toAir Conditioning System Seal Replacement.Install the air conditioning evaporator thermal expansion valve tube hose-(2) to thecompressor hose.Install the air conditioning evaporator thermal expansion valve tube hose nut-(1)to the compressor hose and tighten to 22-Y (16-lb-ft).install the compressor hose retainer nut-(2) to the battery box and tighten to 22-Y (16-lb-ft).Recharge the A/C system. Refer toRefrigerant Recovery and Recharging.Test the affected A/C joints for leaks using J 39400-A halogen leak detector.
