Accessory Wiring Junction Block Replacement Junction Box

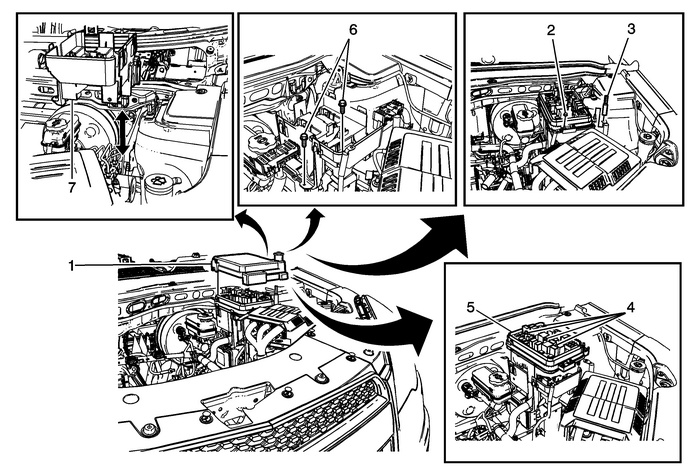

Accessory Wiring Junction Block Replacement

Callout

Component Name

Preliminary Procedures

Disconnect the battery. Refer toBattery Negative Cable Disconnection and Connection.

1

Accessory Wiring Junction Block Cover

Procedure

Remove the accessory wiring junction block cover by pushingin on the 2-retainer tabs located on the sides of thecover and lift. To reinstall, fit together the retainer tabslocated on the ends of the cover and push down on the cover untilthe tabs on the ends of the cover lock into place.

2

Accessory Wiring Junction Block Battery Cable Nut

Caution:Refer toFastener Caution.

Tighten

7-Y(62-lb-in)

3

Accessory Wiring Junction Block Battery Cable Nut

Tighten

7-Y(62-lb-in)

4

Accessory Wiring Junction Block Harness Connector Bolt(Qty:-4)

Tighten

10-Y(89-lb-in)

5

Accessory Wiring Junction Block

ProcedureReposition the accessory wiring harness from the accessorywiring junction block retainer.Remove the accessory wiring junction block by pushing in onthe 4-retainer tabs located on the sides of the blockand lift. To reinstall, fit together the retainer tabs located onthe ends of the cover and push down on the cover until the tabs onthe ends of the cover lock into place.

6

Accessory Wiring Junction Block Retainer Base Bolt

ProcedureDisconnect the battery cable retainer.Position the junction block retainer base alignment tab tothe bracket first, then install the bolt.Tighten

10-Y(89-lb-in)

7

Accessory Wiring Junction Block Retainer Base
