2-6 Clutch Piston Removal Automatic Transmission Unit

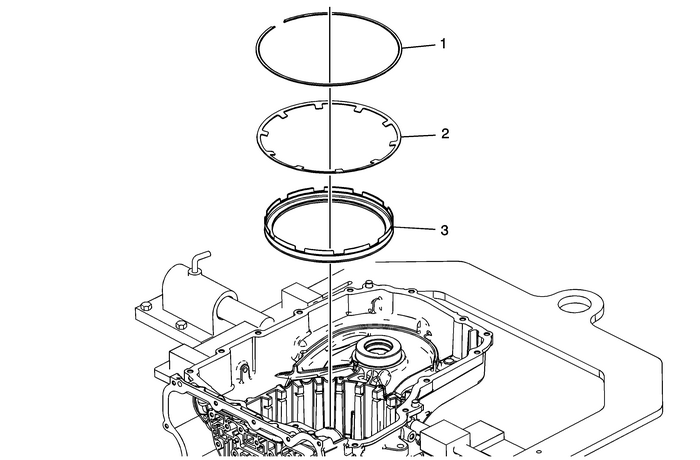

2-6 Clutch Piston Removal

Callout

Component Name

1

2–6 Clutch Spring Retainer

Special Tool

DT-28585 Snap Ring Remover or equivalent

For equivalent regional tools, refer toSpecial Tools.

2

2–6 Clutch Spring

3

2–6 Clutch Piston Assembly

Note:

Use pliers to remove the piston.Inspect the piston seals for damage and/or wear. The piston is reusable.
